AL-KO Comfort 18-103.2 HD - 123016 - Chassis: 9.2021 - 11.2022

Name: AL-KO Comfort 18-103.2 HD - 123016 - Chassis: 9.2021 - 11.2022
SKU: AK123016_1_9_2021_11_2022-group
Price: 0.33 GBP
Availability: InStock

Part No. AK123016_1_9_2021_11_2022-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Comfort 18-103.2 HD - 123016 - Chassis: 9.2021 - 11.2022

Description

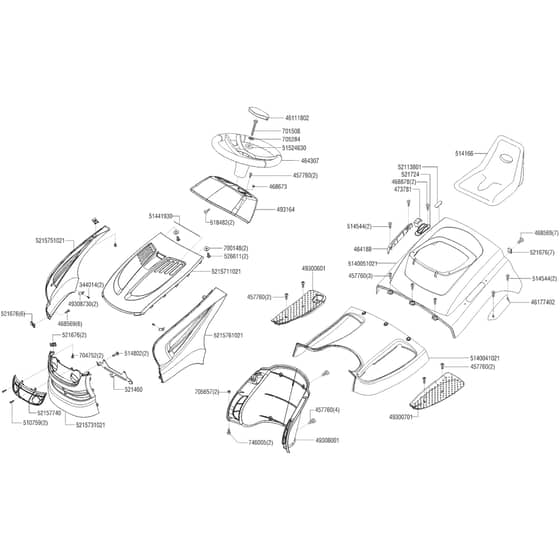

AL-KO Comfort 18-103.2 HD - 123016 - Chassis - Parts Diagram

9.2021 - 11.2022

	Part No.	Details
344014	AK344014 Available to backorder	Screw	£0.82 £0.68
457760	AK457760 Available to backorder	Screw M6x16	£1.03 £0.86
464188	AK521085 Available to backorder	Cover	£16.44 £13.70
464307	AK464307 Available to backorder	Steering Wheel	£48.24 £40.20
468569	AK468569 Available to backorder	Screw Torx 4.8x16	£1.48 £1.23
468673	AK468673 Available to backorder	Locking Plug	£0.84 £0.70
468878	AK468878 Available to backorder	Screw	£0.86 £0.72
493164	AK493164 Available to backorder	Instrument Panel	£44.64 £37.20
510759	AK510759 Available to backorder	Screw	£1.74 £1.45
514166	AK514166 Available to backorder	Seat	£119.16 £99.30
514544	AK514544 Available to backorder	Screw	£1.01 £0.84
514802	AK470375 Available to backorder	Bolt	£0.86 £0.72
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
521460	AK521460E Available to backorder	Bracket	£10.92 £9.10
521676	AK521676 Available to backorder	Nut	£1.81 £1.51
521724	AK521724 Available to backorder	Cover	£3.48 £2.90
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
700148	AK700148 In stock	Washer M6	£0.86 £0.72
701508	AK9331070 In stock	Screw	£0.40 £0.33
705284	AK705284 In stock	Spring Washer M10	£3.88 £3.23
705657	AK705657 In stock	Nut M6	£1.37 £1.14
746005	AK746005 Available to backorder	Screw	£0.67 £0.56
46111802	AK46111802 In stock	Cap	£3.98 £3.32
46177402	AK46177401 Available to backorder	Use Ak46177401	£32.88 £27.40
49300601	AK49300601 Available to backorder	Foot Panel	£26.64 £22.20
49308001	AK49308001 Available to backorder	Panel	£46.08 £38.40
49308730	AK49308730 Available to backorder	Clip	£6.12 £5.10
51524630	AK51524630 In stock	Washer M10	£1.90 £1.58
52113801	AK52113801 Available to backorder	Cap	£2.03 £1.69
52157740	AK52157740 Available to backorder	Lens	£29.88 £24.90
