AL-KO Classic Bio 46 - 117930 - Main Assembly

Name: AL-KO Classic Bio 46 - 117930 - Main Assembly
SKU: AK117930_1-group
Price: 0.34 GBP
Availability: InStock

Part No. AK117930_1-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Classic Bio 46 - 117930 - Main Assembly

Description

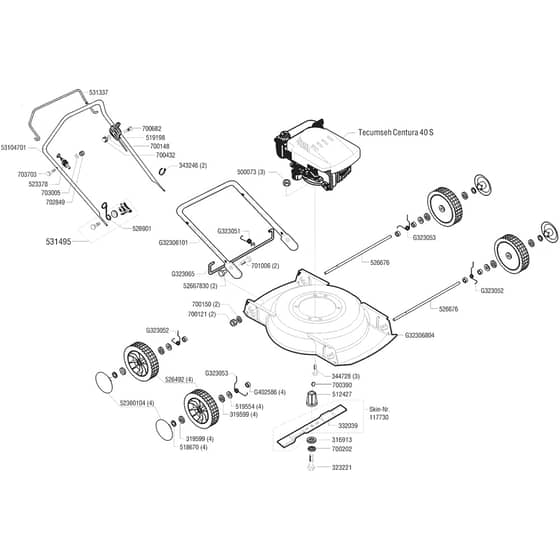

AL-KO Classic Bio 46 - 117930 - Main Assembly - Parts Diagram

	Part No.	Details

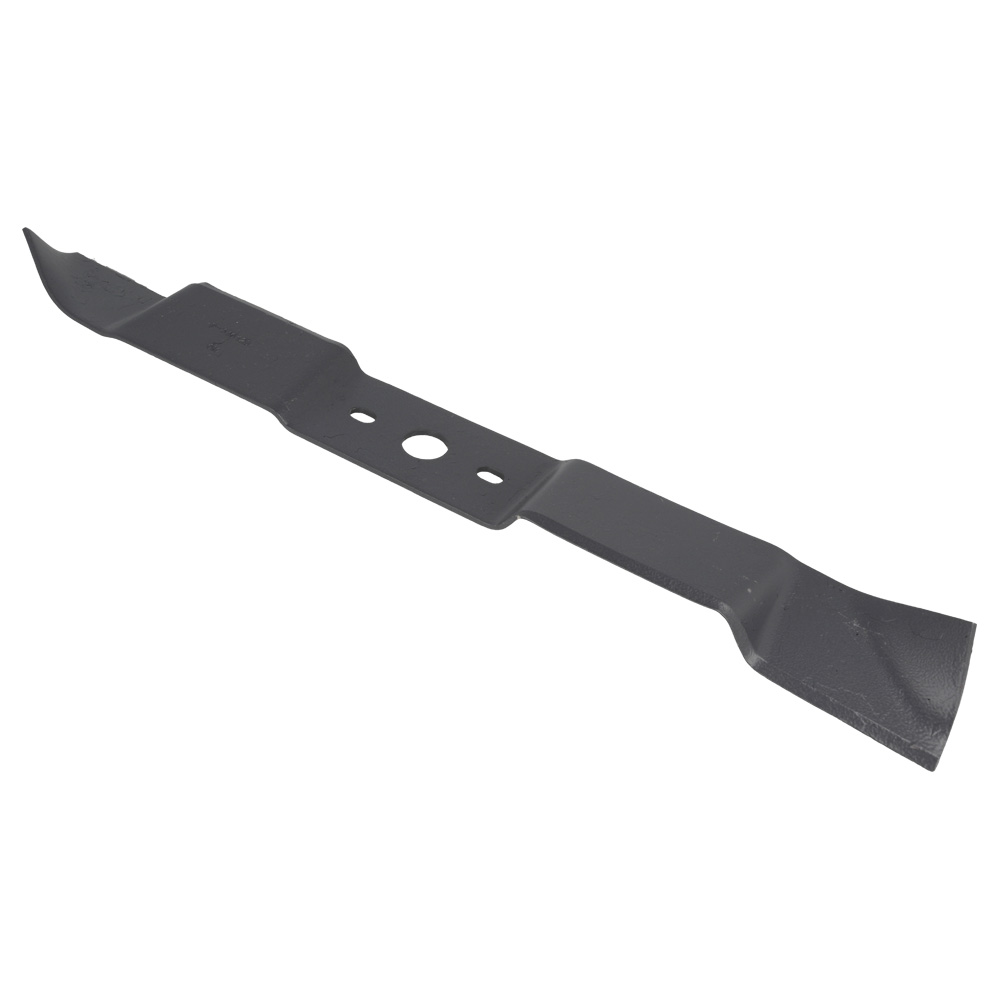

117730	AK440125 In stock	Use Ak440125	£38.66 £32.22
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
319599	AK319599 Available to backorder	Washer	£1.32 £1.10
323051	AKG323051 Available to backorder	Torsion Spring	£4.56 £3.80
323065	AKG323065 Available to backorder	Bar	£11.40 £9.50
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
343246	AK523982 Available to backorder	Use Ak523982	£0.41 £0.34

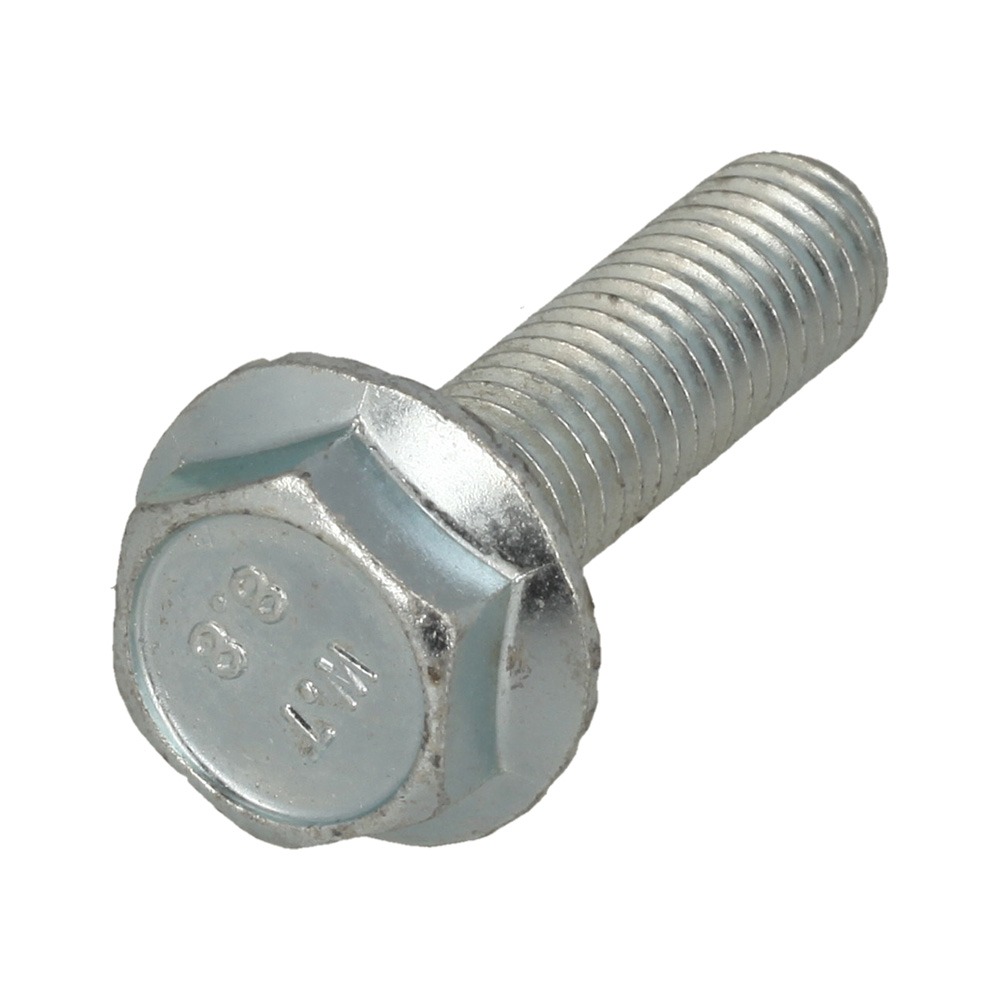

344728	AK344728 Available to backorder	Screw	£1.92 £1.60
402586	AKG532141 Available to backorder	Use Akg532141	£1.34 £1.12
500073	AK500073 In stock	Nut	£1.48 £1.23
512427	AK512427 Available to backorder	Blade Boss 22mm	£17.28 £14.40
518670	AK518670 Available to backorder	Washer 12mm	£1.67 £1.39
519554	AK519554 In stock	Spacer	£1.55 £1.29

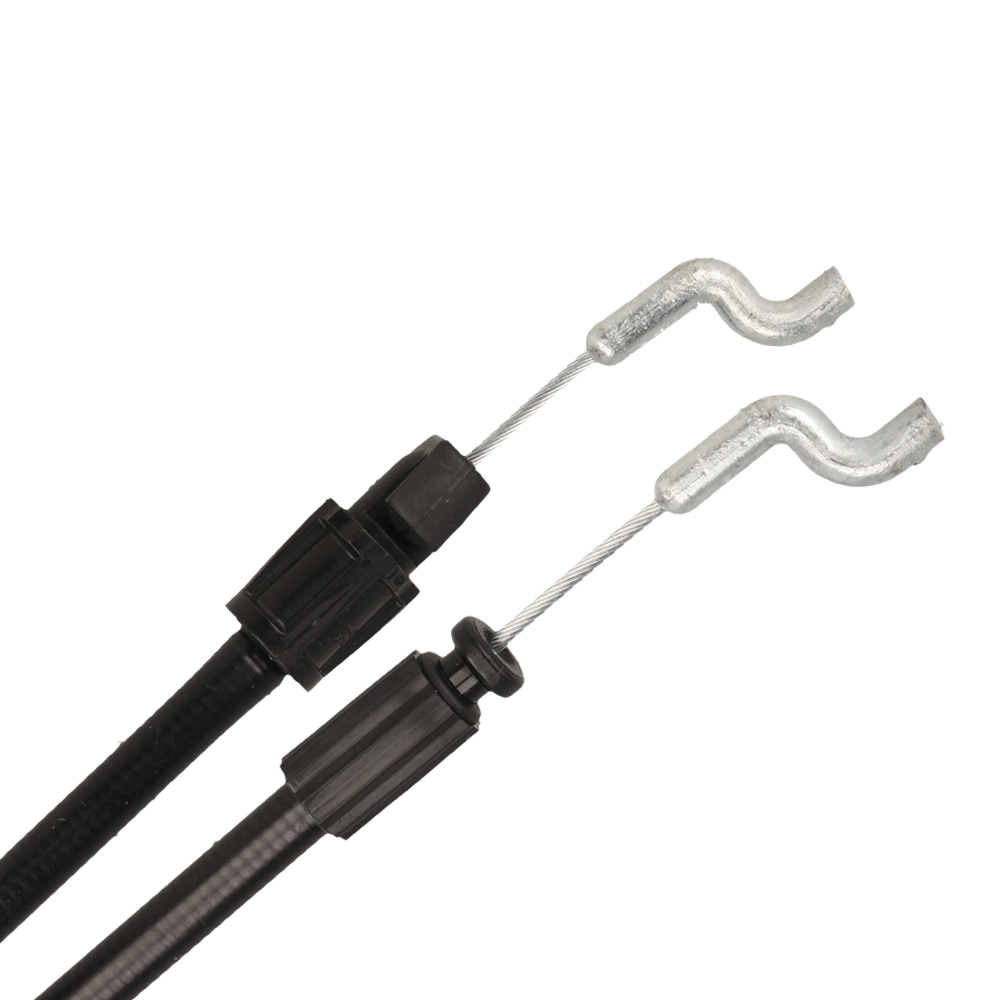

523378	AK523378 Available to backorder	Opc Cable - Dog End	£22.08 £18.40
526492	AK548530 Available to backorder	Use Ak548530	£20.40 £17.00
526676	AK52667610 Available to backorder	Use Ak52667610	£9.36 £7.80
526901	AK526901 Available to backorder	Guide	£3.10 £2.58
531337	AK53133702 Available to backorder	Use Ak53133702	£20.52 £17.10

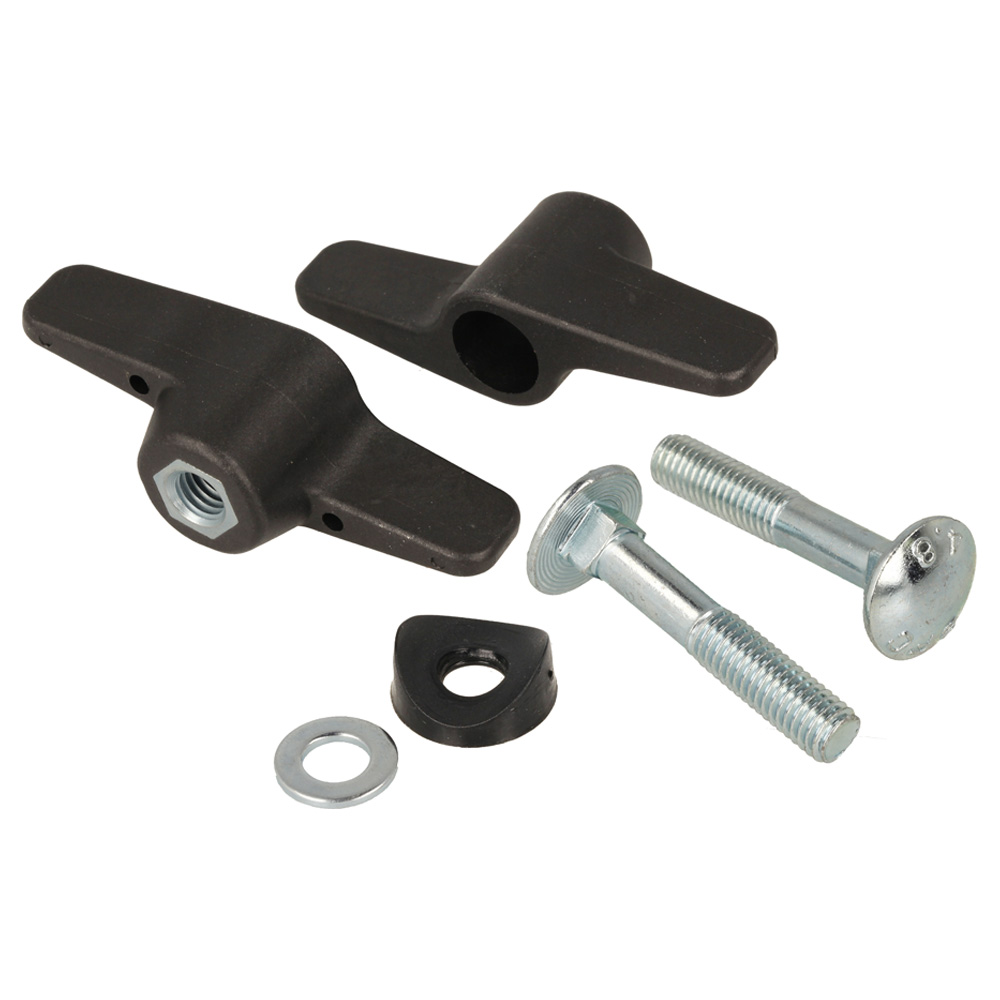

531495	AK527748 Available to backorder	Use Ak527748	£6.12 £5.10
700121	AK704537 In stock	Use Ak704537	£1.15 £0.96
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700150	AK700150 In stock	Spacer M8	£1.08 £0.90
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700682	AK700682 Available to backorder	Bolt	£0.84 £0.70
701006	AK704546 Available to backorder	Use Ak704546	£0.79 £0.66
702849	AK704536 Out of stock	Nut M6	£1.13 £0.94
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
52360104	AK52360104 Available to backorder	Wheel Cap Yellow	£2.42 £2.02
