AL-KO Classic 525 HWS - 119084 - Main Assembly: 1.2008 - 11.2008

Description

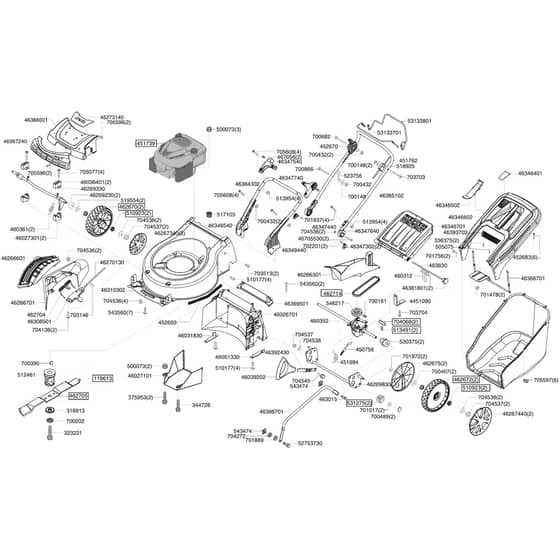

AL-KO Classic 525 HWS - 119084 - Main Assembly - Parts Diagram

1.2008 - 11.2008

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
344728	AK344728 Available to backorder	Ak344728	£1.70 £1.42
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
451762	AK523378 Available to backorder	Opc Cable - Dog End	£21.32 £17.77
451994	AK451994 In stock	Spring	£2.47 £2.06
452670	AK531828 Available to backorder	Use Ak531828	£26.21 £21.84
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
452693	AK452693 Available to backorder	Plate	£21.72 £18.10
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
462672	AK474783 Available to backorder	Use Ak470784	£24.32 £20.27
462675	AK46267501 Available to backorder	Use Ak46267501	£4.28 £3.57
462704	AK462704 Available to backorder	Spring	£8.80 £7.33
462705	AK440126 In stock	Use Ak440126	£46.27 £38.56
462714	AK462714 In stock	Belt	£19.21 £16.01
463015	AK463015 Available to backorder	Pin	£1.86 £1.55
463830	AK463830 Available to backorder	Bar	£1.92 £1.60
467056	AK467056 Available to backorder	Spring	£1.50 £1.25
500073	AK500073 In stock	Nut	£1.28 £1.07
505075	AK505075 Available to backorder	Screw 15mm	£1.12 £0.93
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
512461	AK463962 In stock	Use Ak463962	£20.78 £17.32
513491	AK513491 In stock	Spring	£0.78 £0.65
513954	AK513954 Available to backorder	Nut M6	£0.70 £0.58
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700682	AK700682 Available to backorder	Bolt	£0.70 £0.58
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701756	AK701756 Available to backorder	Screw M5x10	£0.68 £0.57
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
701937	AK701937 Available to backorder	Screw 6x30	£0.70 £0.58
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702201	AK702201 Available to backorder	Pin	£0.70 £0.58
703146	AK703146 Available to backorder	Clip	£0.68 £0.57
703513	AK706562 Available to backorder	Screw St4.8x25	£0.70 £0.58
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704138	AK705968 Available to backorder	Use Ak705968	£0.72 £0.60
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
705596	AK705596 Available to backorder	Bolt	£0.73 £0.61
705597	AK705597 Available to backorder	Clip	£0.84 £0.70
705598	AK705598VA Available to backorder	Nut	£0.91 £0.76
705608	AK705608 Available to backorder	Screw	£0.70 £0.58
45273140	AK45273140 Available to backorder	Alko Plate	£6.12 £5.10
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46027101	AK46027101 In stock	Belt Cover	£13.86 £11.55
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46031830	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£7.92 £6.60
46051330	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
46266301	AK46266301 In stock	Mulch Plug	£19.39 £16.16
46266601	AK44239401 Available to backorder	Flap	£10.36 £8.63
46266701	AK46266701 Available to backorder	Side Discharge Chute	£12.44 £10.37
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.05 £2.54
46267440	AK46267440 Available to backorder	Wheel Cap	£7.50 £6.25
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
46270130	AK462701 Available to backorder	Use Ak462701	£4.84 £4.03
46308501	AK46308530 Available to backorder	Use Ak46308530	£7.40 £6.17
46310302	AK46310340 Available to backorder	Housing	£101.63 £84.69
46346401	AK46346401 Available to backorder	Cover	£1.04 £0.87
46346502	AK46346502 Available to backorder	Box Cover	£4.90 £4.08
46346602	AK46346602 Available to backorder	Upper Grass Box Red	£27.94 £23.28
46347302	AK46347302 Available to backorder	Clip	£10.50 £8.75
46347440	AK46347440 Available to backorder	Nla - Right Adjustment Kit	£33.04 £27.53
46347540	AK47453840 Available to backorder	Use Ak47453840 + Ak47453740	£14.08 £11.73
46347640	AK46347640 Available to backorder	Left Adjuster	£17.16 £14.30
46347740	AK46347740 Available to backorder	Adjuster	£13.14 £10.95
46349540	AK46349540 Available to backorder	Lower Handle Rh	£27.98 £23.32
46366701	AK46366701 Available to backorder	Bag Frame	£40.72 £33.93
46367240	AK46367240 Available to backorder	Cover	£32.58 £27.15
46369501	AK46369501 Available to backorder	Cover	£5.94 £4.95
46381801	AK46051201 Available to backorder	Use Ak46051201	£1.32 £1.10
46384302	AK46384302 Available to backorder	Nla - Lower Handle	£33.92 £28.27
46385102	AK452736 Available to backorder	Use Ak452736	£36.48 £30.40
46392430	AK46392430 Available to backorder	Control Lever	£10.02 £8.35
46393702	AK46393702 Available to backorder	Cover	£3.62 £3.02
46398701	AK46398701 Available to backorder	Connecting Rod	£35.96 £29.97
46705530	AK467055 Available to backorder	Use Ak467055	£4.10 £3.42
52753730	AK527537 In stock	Use Ak527537	£2.94 £2.45
53133801	AK53133840 Available to backorder	Drive Handle Use Ak53133840	£15.92 £13.27
