AL-KO Classic 520 BRE - 119117 - Main Assembly: 1.2008 - 4.2008

Description

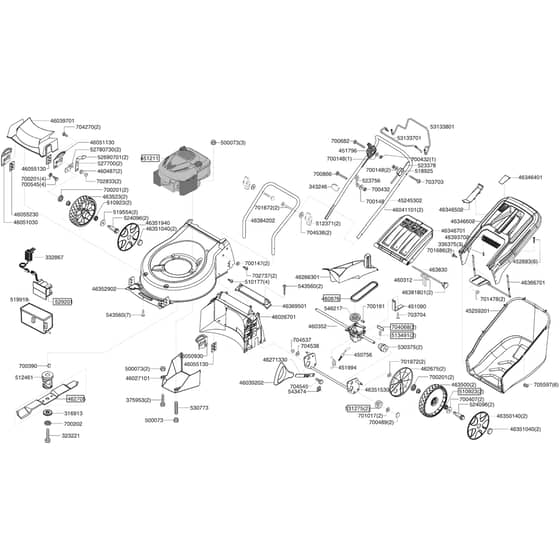

AL-KO Classic 520 BRE - 119117 - Main Assembly - Parts Diagram

1.2008 - 4.2008

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
332867	AK332867 Available to backorder	Battery Charger - Needs Adapter	£48.02 £40.02
336375	AK336375 Available to backorder	Screw 14mm	£0.68 £0.57
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
375953	AK375953 Available to backorder	Screw M8x40	£2.32 £1.93
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451796	AK451849 In stock	Use Ak451849	£21.92 £18.27
451994	AK451994 In stock	Spring	£2.47 £2.06
452683	AK336003 Available to backorder	Screw	£0.84 £0.70
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460876	AK460876 Available to backorder	Fixing Bolt	£9.68 £8.07
462675	AK46267501 Available to backorder	Use Ak46267501	£4.28 £3.57
462705	AK440126 In stock	Use Ak440126	£46.27 £38.56
463500	AK463500 Available to backorder	Rear Drive Wheel	£23.94 £19.95
463523	AK463523 In stock	Front Wheel - 180mm	£18.26 £15.22
463830	AK463830 Available to backorder	Bar	£1.92 £1.60
500073	AK500073 In stock	Nut	£1.28 £1.07
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
512371	AK544675 Available to backorder	Use Ak544675	£2.78 £2.32
512461	AK463962 In stock	Use Ak463962	£20.78 £17.32
513491	AK513491 In stock	Spring	£0.78 £0.65
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
519919	AK342876 Available to backorder	Use Ak342876	£24.60 £20.50
523378	AK523378 Available to backorder	Opc Cable - Dog End	£21.32 £17.77
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
524096	AK524096 In stock	Wheel Bolt	£3.34 £2.78
527700	AK52770030 Available to backorder	Use Ak52770030	£6.62 £5.52
529201	AK529201 Available to backorder	Battery	£48.02 £40.02
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
530773	AK530773 Available to backorder	Screw 80mm	£1.86 £1.55
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700201	AK700201 Available to backorder	Washer M8	£0.77 £0.64
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700682	AK700682 Available to backorder	Bolt	£0.70 £0.58
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701686	AK701686 Available to backorder	Screw M5x16	£0.84 £0.70
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
702833	AK704537 In stock	Use Ak704537	£1.04 £0.87
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704270	AK704270 Available to backorder	Screw M8x25	£0.84 £0.70
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705597	AK705597 Available to backorder	Clip	£0.84 £0.70
45245302	AK45245340 Available to backorder	Use Ak45245340	£33.08 £27.57
45259201	AK456010 Available to backorder	Use Ak46381601	£38.66 £32.22
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46027101	AK46027101 In stock	Belt Cover	£13.86 £11.55
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£7.92 £6.60
46039701	AK46026601 Available to backorder	Front Cover	£12.04 £10.03
46041101	AK46041101 Available to backorder	Handlebar Coupling - Button	£10.68 £8.90
46050930	AK46050930 Available to backorder	Quadrant	£5.94 £4.95
46051030	AK46051030 Available to backorder	Quadrant	£7.12 £5.93
46051130	AK46051130 Available to backorder	Quadrant	£7.12 £5.93
46055130	AK46055130 Available to backorder	Wheel Bracket	£6.28 £5.23
46055230	AK46055230 Available to backorder	Wheel Bracket	£6.54 £5.45
46266301	AK46266301 In stock	Mulch Plug	£19.39 £16.16
46271330	AK46271330 In stock	Lever	£14.32 £11.93
46346401	AK46346401 Available to backorder	Cover	£1.04 £0.87
46346502	AK46346502 Available to backorder	Box Cover	£4.90 £4.08
46346602	AK46346602 Available to backorder	Upper Grass Box Red	£27.94 £23.28
46350140	AK46350140 Available to backorder	Wheel Cap	£2.82 £2.35
46351040	AK46351040 Available to backorder	Cap	£0.86 £0.72
46351530	AK46351530 Available to backorder	Axle	£43.26 £36.05
46351940	AK46351940 Available to backorder	Wheel Cap - 150mm	£2.32 £1.93
46366701	AK46366701 Available to backorder	Bag Frame	£40.72 £33.93
46369501	AK46369501 Available to backorder	Cover	£5.94 £4.95
46381801	AK46051201 Available to backorder	Use Ak46051201	£1.32 £1.10
46384202	AK46384202 Available to backorder	Lower Handle	£37.08 £30.90
46393702	AK46393702 Available to backorder	Cover	£3.62 £3.02
52690701	AK526907 Available to backorder	Use Ak526907	£3.06 £2.55
52780730	AK52780730 Available to backorder	Bracket	£4.67 £3.89
53133801	AK53133840 Available to backorder	Drive Handle Use Ak53133840	£15.92 £13.27
