AL-KO Classic 460 B - 119076 - Main Assembly: 2.2008 - 4.2008

Name: AL-KO Classic 460 B - 119076 - Main Assembly: 2.2008 - 4.2008
SKU: AK119076_1_2_2008_4_2008-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Classic 460 B - 119076 - Main Assembly: 2.2008 - 4.2008

Description

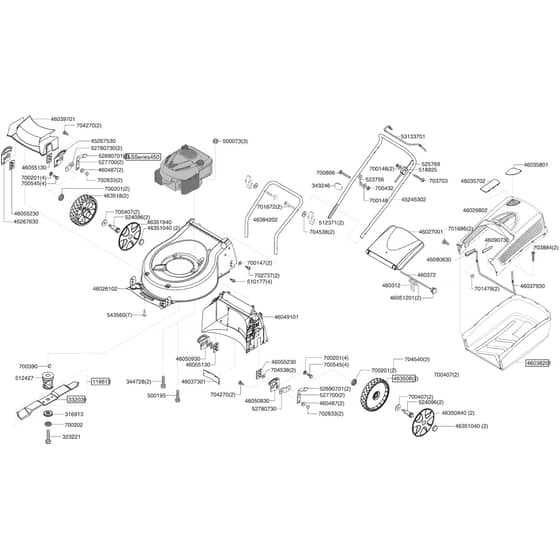

AL-KO Classic 460 B - 119076 - Main Assembly - Parts Diagram

2.2008 - 4.2008

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
332039	AK440125 In stock	Blade 18"	£39.98 £33.32
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
344728	AK344728 Available to backorder	Ak344728	£1.70 £1.42
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460372	AK460372 Available to backorder	Rod	£1.62 £1.35
463508	AK463524 Available to backorder	Use Ak463524	£20.36 £16.97
463518	AK463523 In stock	Use Ak463523	£18.26 £15.22
500073	AK500073 In stock	Nut	£1.28 £1.07
500195	AK500195 Available to backorder	Screw	£2.22 £1.85
510177	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
512371	AK544675 Available to backorder	Use Ak544675	£2.78 £2.32
512427	AK512427 Available to backorder	Blade Boss 22mm	£16.76 £13.97
518925	AK474669 In stock	Cable Holder	£4.61 £3.84
523756	AK523756 Available to backorder	Guide	£2.46 £2.05
524096	AK524096 In stock	Wheel Bolt	£3.34 £2.78
525769	AK525769 In stock	Opc Cable	£22.72 £18.93
527700	AK52770030 Available to backorder	Use Ak52770030	£6.62 £5.52
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700201	AK700201 Available to backorder	Washer M8	£0.77 £0.64
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
700866	AK700866 Available to backorder	Screw M6x30	£0.74 £0.62
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701686	AK701686 Available to backorder	Screw M5x16	£0.84 £0.70
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
702833	AK704537 In stock	Use Ak704537	£1.04 £0.87
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703884	AK703884 Available to backorder	Screw	£0.84 £0.70
704270	AK704270 Available to backorder	Screw M8x25	£0.84 £0.70
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704540	AK704540 Available to backorder	Washer M12	£0.68 £0.57
45245302	AK45245340 Available to backorder	Use Ak45245340	£33.08 £27.57
45267530	AK45267530 Available to backorder	Height Quadrant	£7.12 £5.93
45267630	AK45267630 Available to backorder	Height Quadrant	£7.12 £5.93
46026102	AK46026140 Available to backorder	Use Ak46026140	£78.02 £65.02
46027001	AK46027001 Available to backorder	Grassbox Flap	£13.96 £11.63
46035702	AK46035701 Available to backorder	Use Ak46035701	£1.18 £0.98
46035801	AK46035801 Available to backorder	Cover - Black	£1.25 £1.04
46037301	AK46037301 Available to backorder	Cover	£2.24 £1.87
46037930	AK46037930 Available to backorder	Grassbox Frame	£16.44 £13.70
46038201	AK46038201 Available to backorder	Lower Box	£27.80 £23.17
46039701	AK46026601 Available to backorder	Front Cover	£12.04 £10.03
46049101	AK46049101 In stock	Casing	£29.50 £24.58
46050830	AK46050830 Available to backorder	Quadrant	£7.64 £6.37
46050930	AK46050930 Available to backorder	Quadrant	£5.94 £4.95
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46055130	AK46055130 Available to backorder	Wheel Bracket	£6.28 £5.23
46055230	AK46055230 Available to backorder	Wheel Bracket	£6.54 £5.45
46090730	AK460907 Available to backorder	Use Ak460907	£2.72 £2.27
46090830	AK460908 Available to backorder	Use Ak460908	£2.72 £2.27
46350940	AK46350940 Available to backorder	Hub Cap	£2.54 £2.12
46351040	AK46351040 Available to backorder	Cap	£0.86 £0.72
46351940	AK46351940 Available to backorder	Wheel Cap - 150mm	£2.32 £1.93
46384202	AK46384202 Available to backorder	Lower Handle	£37.08 £30.90
52690701	AK526907 Available to backorder	Use Ak526907	£3.06 £2.55
52780730	AK52780730 Available to backorder	Bracket	£4.67 £3.89
