AL-KO Classic 46 BR - 120599 - Main Assembly: from 10.2001

Name: AL-KO Classic 46 BR - 120599 - Main Assembly: from 10.2001
SKU: AK120599_1_from_10_2001-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Classic 46 BR - 120599 - Main Assembly: from 10.2001

Description

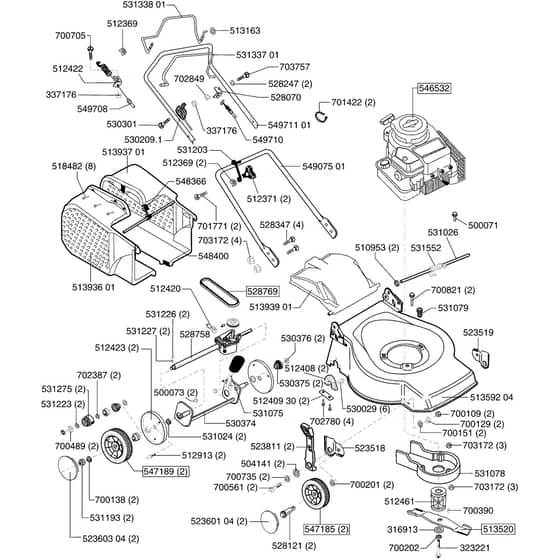

AL-KO Classic 46 BR - 120599 - Main Assembly - Parts Diagram

from 10.2001

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
337176	AK337176 Available to backorder	Nut M6 Nylock	£1.18 £0.98
500071	AK456208 Available to backorder	Ak500071	£1.02 £0.85
500073	AK500073 In stock	Nut	£1.28 £1.07
504141	AK50414130 Available to backorder	Use Ak50414130	£1.86 £1.55
510953	AK510953 Available to backorder	Fastener M6	£0.84 £0.70
512369	AK512369 Available to backorder	Spacer	£1.18 £0.98
512371	AK544675 Available to backorder	Use Ak544675	£2.78 £2.32
512461	AK463962 In stock	Use Ak463962	£20.78 £17.32
512913	AK512913 Available to backorder	Screw	£1.52 £1.27
513163	AK513163 Available to backorder	Washer	£0.70 £0.58
513520	AK470836 Available to backorder	Use Ak470836	£33.68 £28.07
518482	AK518482 Available to backorder	Screw 18mm	£0.84 £0.70
523518	AK523518S Available to backorder	Use Ak523518S	£6.94 £5.78
528070	AK528070 Available to backorder	Bracket	£1.76 £1.47
528121	AK524096 In stock	Use Ak524096	£3.34 £2.78
528247	AK700200 Available to backorder	Use Ak700200	£0.68 £0.57
528347	AK704128 Available to backorder	Use Ak704128	£3.16 £2.63
528758	AK528758 Available to backorder	Gearbox	£186.12 £155.10
528769	AK528769 Available to backorder	V-Belt	£24.82 £20.68
530301	AK703563 Available to backorder	Use Ak703563	£0.77 £0.64
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531024	AK701972 Available to backorder	Use Ak701972	£0.68 £0.57
531026	AK531026 Available to backorder	Rod	£5.28 £4.40
531075	AK53107502 Available to backorder	Lever	£31.96 £26.63
531079	AK531079 Available to backorder	Grommet	£1.04 £0.87
531193	AK704537 In stock	Use Ak704537	£1.04 £0.87
531203	AK526901 Available to backorder	Use Ak526901	£2.84 £2.37
531223	AK702387 Available to backorder	Use Ak702387	£0.70 £0.58
531226	AK704068 In stock	No Longer Available	£0.80 £0.67
531227	AK513491 In stock	Use Ak513491	£0.78 £0.65
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
531552	AK531552 Available to backorder	Spring	£4.24 £3.53
547185	AK547185 Available to backorder	Wheel	£14.42 £12.02
547189	AK547189 Available to backorder	Wheel	£28.10 £23.42
548366	AK548366 Available to backorder	Hanger	£1.52 £1.27
548400	AK548400 Available to backorder	Rod	£2.36 £1.97
549708	AK549708 Available to backorder	Clutch Cable	£26.62 £22.18
549710	AK549710 Available to backorder	Opc Cable	£25.88 £21.57
700109	AK704534 Available to backorder	Use Ak704534	£0.68 £0.57
700129	AK700129 Available to backorder	Spring Washer	£1.10 £0.92
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700151	AK700151 Available to backorder	Washer M10	£0.70 £0.58
700201	AK700201 Available to backorder	Washer M8	£0.77 £0.64
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700489	AK700489 In stock	Circlip	£0.78 £0.65
700561	AK700561 Available to backorder	Screw M10x25	£1.18 £0.98
700705	AK700705 Available to backorder	Screw M6x35	£0.68 £0.57
700735	AK700735 Available to backorder	Washer	£1.70 £1.42
700821	AK701322 Available to backorder	Use Ak701322	£1.18 £0.98
701771	AK701771 Available to backorder	Screw	£1.52 £1.27
702780	AK470375 Available to backorder	Use Ak348947	£0.70 £0.58
702849	AK704536 Out of stock	Nut M6	£0.97 £0.81
703757	AK703757 Available to backorder	Screw	£0.70 £0.58
5302091	AK451849 In stock	Use Ak451849	£21.92 £18.27
51393901	AK51393901 Available to backorder	Flap	£25.44 £21.20
52360104	AK52360104 Available to backorder	Wheel Cap Yellow	£2.22 £1.85
52360304	AK52360304 Available to backorder	Wheel Cap	£3.82 £3.18
53133801	AK53133840 Available to backorder	Drive Handle Use Ak53133840	£15.92 £13.27
54907501	AK52700740 Available to backorder	Use Ak52700740	£32.58 £27.15
