AL-KO Classic 40 B - 121026 - Main Assembly: 9.2002 - 1.2003

Name: AL-KO Classic 40 B - 121026 - Main Assembly: 9.2002 - 1.2003
SKU: AK121026_1_9_2002_1_2003-group
Price: 0.68 GBP
Availability: InStock

Part No. AK121026_1_9_2002_1_2003-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Classic 40 B - 121026 - Main Assembly: 9.2002 - 1.2003

Description

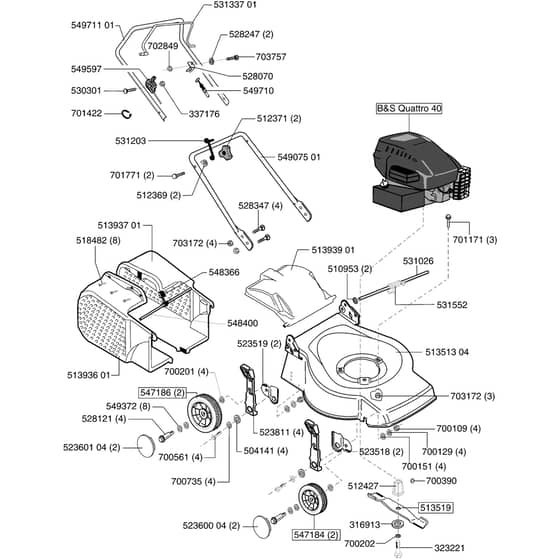

AL-KO Classic 40 B - 121026 - Main Assembly - Parts Diagram

9.2002 - 1.2003

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
337176	AK337176 Available to backorder	Nut M6 Nylock	£1.42 £1.18
504141	AK50414130 Available to backorder	Use Ak50414130	£2.03 £1.69
510953	AK510953 Available to backorder	Fastener M6	£1.01 £0.84
512369	AK512369 Available to backorder	Spacer	£1.42 £1.18
512371	AK544675 Available to backorder	Use Ak544675	£3.04 £2.53
512427	AK512427 Available to backorder	Blade Boss 22mm	£17.28 £14.40
518482	AK518482 Available to backorder	Screw 18mm	£1.04 £0.87
523518	AK523518S Available to backorder	Use Ak523518S	£7.20 £6.00
528070	AK528070 Available to backorder	Bracket	£1.92 £1.60
528121	AK524096 In stock	Use Ak524096	£3.41 £2.84
528247	AK700200 Available to backorder	Use Ak700200	£0.82 £0.68
528347	AK704128 Available to backorder	Use Ak704128	£3.24 £2.70
530301	AK703563 Available to backorder	Use Ak703563	£0.84 £0.70
531026	AK531026 Available to backorder	Rod	£5.52 £4.60
531203	AK526901 Available to backorder	Use Ak526901	£3.10 £2.58
531552	AK531552 Available to backorder	Spring	£4.44 £3.70
547184	AK547183 Available to backorder	Use Ak547183	£9.48 £7.90
547186	AK548530 Available to backorder	No Longer Available	£20.40 £17.00
548366	AK548366 Available to backorder	Hanger	£1.66 £1.38
548400	AK548400 Available to backorder	Rod	£2.58 £2.15
549372	AK700407 Available to backorder	Use Ak700407	£0.84 £0.70
549597	AK546493 Available to backorder	Use Ak546493	£20.28 £16.90
549710	AK549710 Available to backorder	Opc Cable	£26.76 £22.30
700109	AK704534 Available to backorder	Use Ak704534	£0.82 £0.68
700129	AK700129 Available to backorder	Spring Washer	£1.32 £1.10
700151	AK700151 Available to backorder	Washer M10	£0.84 £0.70
700201	AK700201 Available to backorder	Washer M8	£0.88 £0.73
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700561	AK700561 Available to backorder	Screw M10x25	£1.42 £1.18
700735	AK700735 Available to backorder	Washer	£1.86 £1.55
701171	AK701171 Available to backorder	Screw M8x30	£1.01 £0.84
701771	AK701771 Available to backorder	Screw	£1.66 £1.38
702849	AK704536 Out of stock	Nut M6	£1.13 £0.94
703172	AK500073 In stock	Use Ak500073	£1.48 £1.23
703757	AK703757 Available to backorder	Screw	£0.84 £0.70
51393901	AK51393901 Available to backorder	Flap	£26.28 £21.90
52360004	AK52360004 Available to backorder	Wheel Cap	£2.10 £1.75
52360104	AK52360104 Available to backorder	Wheel Cap Yellow	£2.42 £2.02
54907501	AK52700740 Available to backorder	Use Ak52700740	£33.72 £28.10
