AL-KO Classic 4.66 P-A - 119765 - Main Assembly: 8.2016 - 3.2018

Description

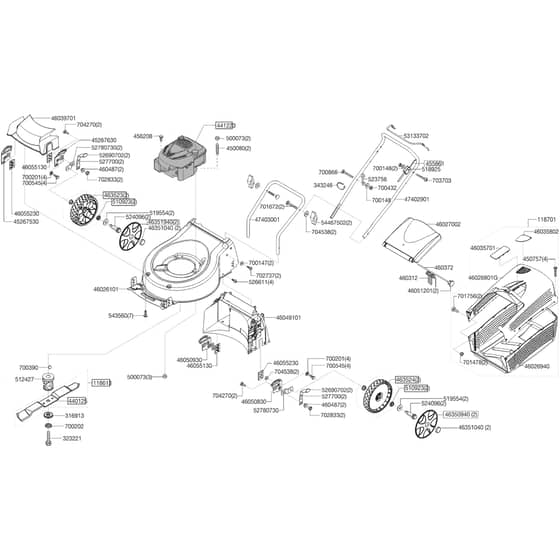

AL-KO Classic 4.66 P-A - 119765 - Main Assembly - Parts Diagram

8.2016 - 3.2018

	Part No.	Details
52690702	AK526907 Available to backorder	Knob	£3.18 £2.65
118613	AK440125 In stock	Use Ak440125	£38.66 £32.22
118701	AK118701 Available to backorder	Grass Box Complete Black	£79.20 £66.00
316913	AK31691330 Available to backorder	Washer	£2.96 £2.47
323221	AK457347 Available to backorder	Bolt	£3.20 £2.67
343246	AK523982 Available to backorder	Use Ak523982	£0.41 £0.34
441223	AK441223 Available to backorder	Engine Pro 125 (Lc1P61Fe)	£205.08 £170.90
450080	AK450080 Available to backorder	Grubscrew	£1.74 £1.45
450757	AK450757 Available to backorder	Screw 20mm	£1.01 £0.84
455861	AK455861 In stock	Cable	£21.64 £18.03
456208	AK456208 Available to backorder	Bolt - Thread Cutting	£1.22 £1.02
460312	AK460312 In stock	Spring	£6.84 £5.70
460372	AK460372 In stock	Rod	£1.88 £1.57
463523	AK463523 In stock	Front Wheel - 180mm	£19.64 £16.37
463524	AK463524 Available to backorder	Rear Wheel Assy	£21.48 £17.90
500073	AK500073 In stock	Nut	£1.48 £1.23
510923	AK510923 Available to backorder	Bearing	£7.20 £6.00
512427	AK512427 Available to backorder	Blade Boss 22mm	£17.28 £14.40
518925	AK474669 In stock	Cable Holder	£4.36 £3.63
519554	AK519554 In stock	Spacer	£1.55 £1.29
523756	AK523756 In stock	Guide	£2.57 £2.14
524096	AK524096 In stock	Wheel Bolt	£3.41 £2.84
526611	AK526611 Available to backorder	Screw 14mm	£1.30 £1.08
527700	AK52770030 Available to backorder	Use Ak52770030	£7.20 £6.00
543560	AK543560 Available to backorder	Screw 10mm	£1.08 £0.90
700147	AK703451 In stock	Washer	£1.03 £0.86
700148	AK700148 In stock	Washer M6	£0.86 £0.72
700201	AK700201 Available to backorder	Washer M8	£0.88 £0.73
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.84 £0.70
700390	AK700390 Available to backorder	Woodruff Key	£0.84 £0.70
700432	AK700432 Available to backorder	Dome Nut M6	£0.86 £0.72
700545	AK700545 Available to backorder	Bolt M8x16	£0.82 £0.68
700866	AK700866 Available to backorder	Screw M6x30	£0.89 £0.74
701478	AK701478 Available to backorder	Dome Nut M5	£0.84 £0.70
701672	AK701672 In stock	Screw M8x45	£1.72 £1.43
701756	AK701756 Available to backorder	Screw M5x10	£0.82 £0.68
702737	AK702737 In stock	Screw St4.8x19mm	£1.14 £0.95
702833	AK704537 In stock	Use Ak704537	£1.15 £0.96
703703	AK703703 Available to backorder	Screw	£1.01 £0.84
704270	AK704270 Available to backorder	Screw M8x25	£1.01 £0.84
704538	AK704538 In stock	Washer M8	£1.09 £0.91
45267530	AK45267530 Available to backorder	Height Quadrant	£7.32 £6.10
45267630	AK45267630 Available to backorder	Height Quadrant	£7.32 £6.10
46026101	AK46026140 Available to backorder	Use Ak46026140	£80.76 £67.30
46026940	AK46026901 Available to backorder	Lower Box (Grey)	£27.00 £22.50
46027002	AK46027002 Available to backorder	Grass Flap	£14.64 £12.20
46035701	AK46035701 Available to backorder	Cover	£1.42 £1.18
46035802	AK46035801 Available to backorder	Cover - Red	£1.39 £1.16
46039701	AK46026601 Available to backorder	Front Cover	£12.48 £10.40
46050830	AK46050830 Available to backorder	Quadrant	£7.92 £6.60
46050930	AK46050930 Available to backorder	Quadrant	£6.12 £5.10
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.50 £1.25
46055130	AK46055130 Available to backorder	Wheel Bracket	£6.48 £5.40
46055230	AK46055230 Available to backorder	Wheel Bracket	£7.08 £5.90
46350940	AK46350940 Available to backorder	Hub Cap	£2.77 £2.31
46351040	AK46351040 Available to backorder	Cap	£0.89 £0.74
47403001	AK47403001 Available to backorder	Lower Handle	£35.04 £29.20
52780730	AK52780730 In stock	Bracket	£5.39 £4.49
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.95 £2.46
463519402	AK46351940 Available to backorder	Ak46351940(2)	£2.53 £2.11
