AL-KO Classic 4.62 SPi-A - 123008 - Main Assembly

Name: AL-KO Classic 4.62 SPi-A - 123008 - Main Assembly
SKU: AK123008_1-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO Classic 4.62 SPi-A - 123008 - Main Assembly

Description

AL-KO Classic 4.62 SPi-A - 123008 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
113057	AK440125 In stock	Blade	£39.98 £33.32
332418	AK332418 Available to backorder	Ignition Switch	£25.94 £21.62
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
441811	AK441811 Available to backorder	E-Start Top Tamp R9006	£14.56 £12.13
441980	AK441980 Available to backorder	Blade Boss 22.2mm	£19.48 £16.23
443085	AK443085 Available to backorder	Wire Harness E-Start Lawnmower	£22.16 £18.47
450756	AK450756 In stock	Gearbox Cable	£22.42 £18.68
450757	AK450757 Available to backorder	Screw 20mm	£0.84 £0.70
451090	AK451090 Available to backorder	Bracket	£1.86 £1.55
451662	AK451662 Available to backorder	Bar Stud M8x55	£1.52 £1.27
451994	AK451994 In stock	Spring	£2.47 £2.06

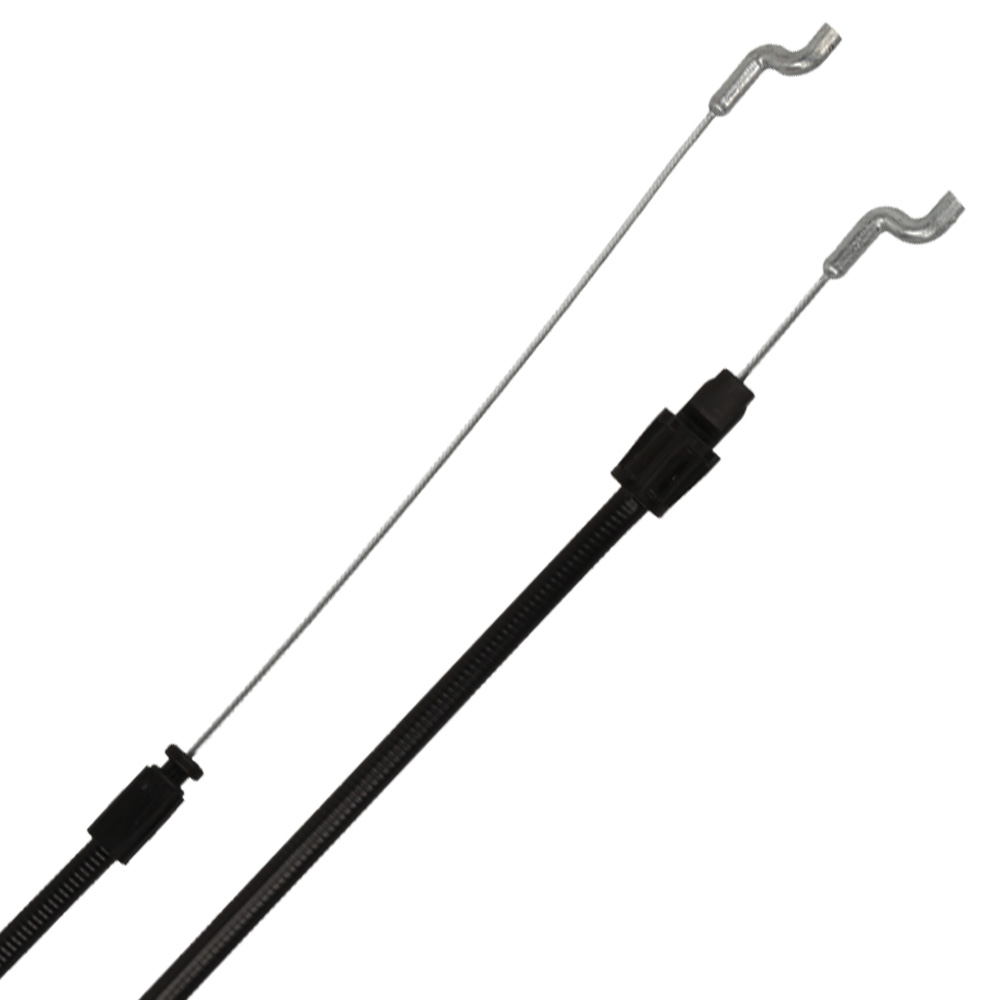

452921	AK452061 Available to backorder	Cable	£18.66 £15.55
457346	AK457346 Available to backorder	Hexagon Screw 3/8" - 24Unfx48	£2.26 £1.88
457852	AK457852 Available to backorder	Charger - Loncin 170	£34.76 £28.97
457853	AK457853 Available to backorder	Battery - Loncin 170	£140.02 £116.68
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460318	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
460352	AK460352 Available to backorder	Gearbox C/W Pulley	£76.58 £63.82
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
460372	AK460372 Available to backorder	Rod	£1.62 £1.35
460376	AK460376 In stock	Belt	£17.82 £14.85
460513	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
462670	AK462670 In stock	Front Wheel - 200mm	£22.80 £19.00
463015	AK463015 Available to backorder	Pin	£1.86 £1.55
468589	AK468589 Available to backorder	Screw	£0.68 £0.57
474669	AK474669 In stock	Cable Holder	£4.61 £3.84
474783	AK474783 Available to backorder	Rear Wheel	£24.32 £20.27
500073	AK500073 In stock	Nut	£1.28 £1.07
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
513491	AK513491 In stock	Spring	£0.78 £0.65
517103	AK517103 Available to backorder	Cable Grommet	£1.68 £1.40
518483	AK518483 Available to backorder	Screw St4 x 35mm	£0.84 £0.70
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
526611	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
530375	AK530375 Available to backorder	Bush	£9.00 £7.50
531275	AK531275 Available to backorder	Pinion	£16.91 £14.09
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
546217	AK546217 Available to backorder	Pulley	£14.16 £11.80
700147	AK703451 Available to backorder	Washer	£3.26 £2.72
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700161	AK705986 Available to backorder	Roll Pin	£1.28 £1.07
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700407	AK700407 Available to backorder	Washer M12	£2.76 £2.30
700432	AK700432 Available to backorder	Dome Nut M6	£1.20 £1.00
700489	AK700489 In stock	Circlip	£0.78 £0.65
701017	AK701017 Available to backorder	Washer 12x18x1.2	£0.78 £0.65
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701756	AK701756 Available to backorder	Screw M5x10	£0.68 £0.57
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
701972	AK701972 Available to backorder	Washer 13mm	£0.68 £0.57
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704068	AK704068 In stock	Pawl	£0.80 £0.67
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704538	AK704538 In stock	Washer M8	£0.98 £0.82
704545	AK704545 In stock	Screw M8x25	£0.86 £0.72
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
44116602	AK44116602 Available to backorder	Ak44116602	£9.02 £7.52
44121901	AK44121901 Available to backorder	Cover	£12.56 £10.47
44181201	AK44181201 Available to backorder	Ak44181201	£4.90 £4.08
45383740	AK453838 Available to backorder	Use Ak453838	£45.98 £38.32
46025840	AK46025840 Available to backorder	Housing - No Side Discharge	£79.64 £66.37
46026701	AK46026701 In stock	Rear Frame	£30.30 £25.25
46026901	AK46026940 Available to backorder	Lower Box (Black)	£25.64 £21.37
46027001	AK46027001 Available to backorder	Grassbox Flap	£13.96 £11.63
46027101	AK46027101 In stock	Belt Cover	£13.86 £11.55
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46035740	AK46035740 Available to backorder	Grass Top Cover	£1.04 £0.87
46035801	AK46035801 Available to backorder	Cover - Black	£1.25 £1.04
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46039202	AK46039202 Available to backorder	Red Handle Height Adj	£7.92 £6.60
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46267340	AK46267340 Available to backorder	Wheel Cap - 200mm	£3.05 £2.54
46267440	AK46267440 Available to backorder	Wheel Cap	£7.50 £6.25
46267501	AK46267501 Available to backorder	Back Plate	£4.28 £3.57
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46269830	AK46269830 Available to backorder	Rear Axle	£41.41 £34.51
46271330	AK46271330 In stock	Lever	£14.32 £11.93
46374001	AK46374001 Available to backorder	Mulch Wedge - 46cm	£17.46 £14.55
47403040	AK47403040 Available to backorder	Lower Handle	£23.42 £19.52
52753730	AK527537 In stock	Use Ak527537	£2.94 £2.45
53133702	AK53133702 Available to backorder	Opc Handle	£20.52 £17.10
53133840	AK53133840 Available to backorder	Drive Handle - Silver (Wnu)	£15.92 £13.27
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
