AL-KO BIO FAVORIT 468 - 118633 - Main Assembly

Name: AL-KO BIO FAVORIT 468 - 118633 - Main Assembly
SKU: AK118633_1-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO BIO FAVORIT 468 - 118633 - Main Assembly

Description

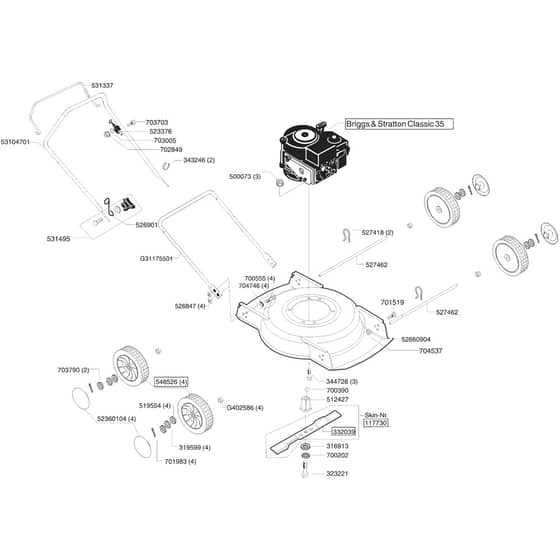

AL-KO BIO FAVORIT 468 - 118633 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
319599	AK319599 Available to backorder	Washer	£1.10 £0.92
323221	AK457347 Available to backorder	Bolt	£2.94 £2.45
332039	AK440125 In stock	Blade 18"	£39.98 £33.32
343246	AK523982 Available to backorder	Use Ak523982	£0.34 £0.28
344728	AK344728 Available to backorder	Screw	£1.70 £1.42
402586	AKG532141 Available to backorder	Use Akg532141	£1.12 £0.93
500073	AK500073 In stock	Nut	£1.28 £1.07
512427	AK512427 Available to backorder	Blade Boss 22mm	£16.76 £13.97
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
523376	AK525769 In stock	Use Ak525769	£22.72 £18.93
526847	AK321126 Available to backorder	Nut	£0.91 £0.76
526901	AK526901 Available to backorder	Guide	£2.84 £2.37
527418	AK476695 In stock	Use Ak476695	£0.90 £0.75
527462	AK527462 Available to backorder	Axle	£14.08 £11.73
531337	AK53133702 Available to backorder	Use Ak53133702	£20.52 £17.10
531495	AK527748 Available to backorder	Use Ak527748	£5.94 £4.95
548526	AK548530 Available to backorder	Use Ak548530	£20.16 £16.80
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700555	AK700555 Available to backorder	Bolt	£0.68 £0.57
701519	AK701519 Available to backorder	Screw	£0.70 £0.58
701983	AK701983 Available to backorder	Split Pin	£0.70 £0.58
702849	AK704536 Out of stock	Nut M6	£0.97 £0.81
703005	AK700148 In stock	Ak703005	£0.79 £0.66
703703	AK703703 Available to backorder	Screw	£0.84 £0.70
703790	AK703790 Available to backorder	Washer	£0.84 £0.70
704537	AK704537 In stock	Lock Nut M8	£1.04 £0.87
704746	AK704746 Available to backorder	Washer M6	£0.84 £0.70
31175501	AKG31175501 Available to backorder	Lower Handle	£41.64 £34.70
52360104	AK52360104 Available to backorder	Wheel Cap Yellow	£2.22 £1.85
52660904	AK52660904 Available to backorder	Housing	£111.78 £93.15
