AL-KO 4200 BW - 118312 - Main Assembly

Name: AL-KO 4200 BW - 118312 - Main Assembly
SKU: AK118312_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

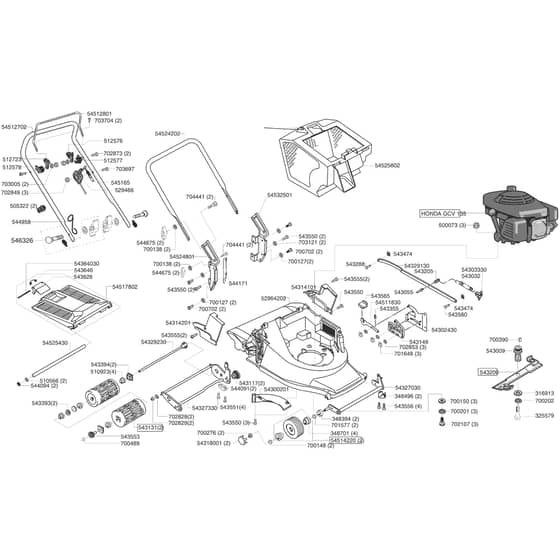

AL-KO 4200 BW - 118312 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
316913	AK31691330 Available to backorder	Washer	£2.70 £2.25
325579	AK457346 Available to backorder	Use Ak457346	£2.26 £1.88
348496	AK348496 Available to backorder	Axle Mount	£2.56 £2.13
348701	AK348701 Available to backorder	Bearing	£7.64 £6.37
500073	AK500073 In stock	Nut	£1.28 £1.07
510566	AK510566 Available to backorder	Fastener 8mm	£1.18 £0.98
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
512576	AK512576 Available to backorder	Bracket	£1.86 £1.55
512577	AK512577 Available to backorder	Bracket	£2.40 £2.00
512723	AK512723 Available to backorder	Bracket	£1.52 £1.27
529466	AK529466 Available to backorder	Throttle Cable	£38.52 £32.10
543009	AK543009 Available to backorder	Blade Boss	£17.32 £14.43
543032	AK543032 Available to backorder	Spring	£6.76 £5.63
543117	AK543117 Available to backorder	Bearing Bush	£16.46 £13.72
543288	AK527537 In stock	Use Ak527537	£2.94 £2.45
543355	AK543355 Available to backorder	Compression Spring	£0.74 £0.62
543393	AK543393 Available to backorder	Cap	£0.70 £0.58
543474	AK543474 In stock	Circlip	£0.78 £0.65
543550	AK543550 Available to backorder	Screw	£1.18 £0.98
543553	AK543553 Available to backorder	Bush	£12.56 £10.47
543555	AK543555 Available to backorder	Screw 30mm	£0.68 £0.57
543556	AK543556 Available to backorder	Screw	£1.04 £0.87
543565	AK543565 Available to backorder	Bracket	£2.56 £2.13
543580	AK543580 Available to backorder	Bolt	£2.28 £1.90
543646	AK543646 Available to backorder	Spring	£3.42 £2.85
544094	AK544094 Available to backorder	Terminal Cap	£1.18 £0.98
544675	AK544675 Available to backorder	Wingnut M8 - Black	£2.78 £2.32
544958	AK544958 Available to backorder	Rope Guide	£4.08 £3.40
545165	AK545165 Available to backorder	Nla -Opc Cable	£15.92 £13.27
546326	AK527748 Available to backorder	Use Ak527748	£5.94 £4.95

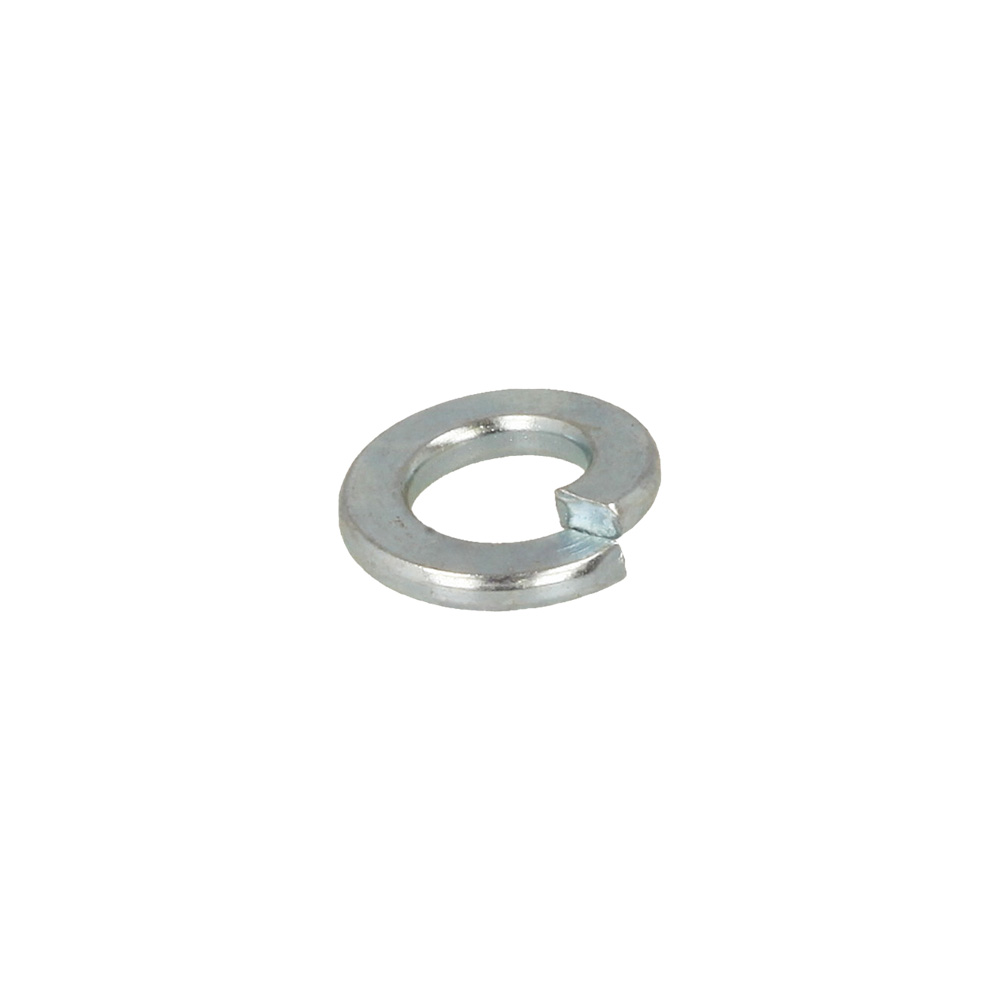

700127	AK704746 Available to backorder	Use Ak704746	£0.84 £0.70
700138	AK704538 In stock	Washer M8	£0.98 £0.82
700148	AK700148 In stock	Washer M6	£0.79 £0.66
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700201	AK700201 Available to backorder	Grip Washer M8	£0.77 £0.64
700202	AK700202 Available to backorder	Grip Fix Washer - M10	£0.70 £0.58
700276	AK704536 Out of stock	Use Ak704536	£0.97 £0.81
700390	AK700390 Available to backorder	Woodruff Key	£0.70 £0.58
700489	AK700489 In stock	Circlip	£0.78 £0.65
700702	AK700702 In stock	Screw M6x25	£0.91 £0.76
701577	AK705116 Available to backorder	Use Ak705116	£0.68 £0.57
701648	AK701648 Available to backorder	Circlip	£1.18 £0.98
702107	AK702107 Available to backorder	Screw	£1.70 £1.42
702828	AK700240 Available to backorder	Use Ak700240	£1.18 £0.98
702829	AK700119 Available to backorder	Use Ak700119	£1.86 £1.55
702853	AK702853 Available to backorder	Washer M8	£0.70 £0.58
702873	AK702873 Available to backorder	Bolt	£0.70 £0.58
703121	AK703451 Available to backorder	Use Ak700147	£3.26 £2.72
703697	AK703697 Available to backorder	Screw M6x55	£0.96 £0.80
703704	AK703704 Available to backorder	Screw St3.5x13mm	£0.68 £0.57
704441	AK704441 Available to backorder	Screw	£0.84 £0.70
54300201	AK54300201 Available to backorder	Cover	£11.56 £9.63
54314101	AK54314101 Available to backorder	Side Piece	£8.48 £7.07
54329130	AK54329130 Available to backorder	Height Adjust Bar	£18.66 £15.55
54524202	AK54524201 Available to backorder	Use Ak54524201	£44.60 £37.17
54525802	AK54525801 Available to backorder	Use Ak54525801	£175.34 £146.12
