AL-KO 36V Comfort 42.2 Li - 119977 - Main Assembly

Name: AL-KO 36V Comfort 42.2 Li - 119977 - Main Assembly
SKU: AK119977_1-group
Price: 0.57 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

AL-KO 36V Comfort 42.2 Li - 119977 - Main Assembly

Description

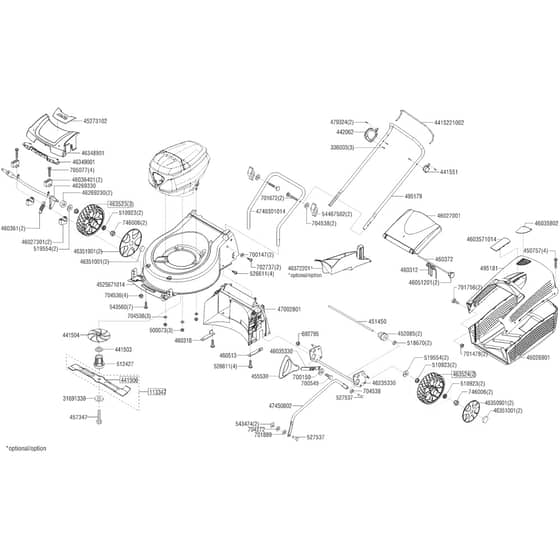

AL-KO 36V Comfort 42.2 Li - 119977 - Main Assembly - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
113347	AK113347 Available to backorder	Knife -441506- 42.5 Moweo	£44.34 £36.95
336003	AK336003 Available to backorder	Screw 20mm	£0.84 £0.70
441503	AK441503 Available to backorder	Washer	£8.02 £6.68
441504	AK441504 Available to backorder	Fan	£11.88 £9.90
441506	AK441506 Available to backorder	Blade - 42.5 Li Moweo	£26.60 £22.17
441551	AK441551 Available to backorder	Lever Bracket	£70.32 £58.60
442062	AK442062 Available to backorder	Switch	£31.54 £26.28
450757	AK450757 Available to backorder	Screw 20mm	£0.84 £0.70
451450	AK451450 Available to backorder	Axle	£4.84 £4.03
455530	AK455530 Available to backorder	Handle	£6.78 £5.65
457347	AK457347 Available to backorder	Bolt 3/8 Unf - 68	£2.94 £2.45
460312	AK460312 Available to backorder	Spring	£6.56 £5.47
460318	AK460318 Available to backorder	Bracket R/H	£8.34 £6.95
460361	AK460361 Available to backorder	Spring	£2.03 £1.69
460372	AK460372 Available to backorder	Rod	£1.62 £1.35
460513	AK460513 Available to backorder	Bracket L/H	£8.66 £7.22
463523	AK463523 In stock	Front Wheel - 180mm	£18.26 £15.22
463524	AK463524 Available to backorder	Rear Wheel Assy	£20.36 £16.97
479324	AK479324 Available to backorder	Screw	£1.18 £0.98
495179	AK495179 Available to backorder	Upper Bar 42cm Moweo +Ss Kpl R810-M	£58.26 £48.55
495181	AK495181 Available to backorder	Grassbox Top Cover	£33.36 £27.80
500073	AK500073 In stock	Nut	£1.28 £1.07
510923	AK510923 Available to backorder	Bearing	£7.62 £6.35
512427	AK512427 Available to backorder	Blade Boss 22mm	£16.76 £13.97
518670	AK518670 Available to backorder	Washer 12mm	£1.50 £1.25
519554	AK519554 Available to backorder	Spacer	£1.28 £1.07
526611	AK526611 Available to backorder	Screw 14mm	£1.09 £0.91
527537	AK527537 In stock	Pin 16.7mm x 7.9mm	£2.94 £2.45
543474	AK543474 In stock	Circlip	£0.78 £0.65
543560	AK543560 Available to backorder	Screw 10mm	£0.96 £0.80
692795	AK692795 Available to backorder	Nut	£1.18 £0.98
700147	AK703451 Available to backorder	Ak700147	£3.26 £2.72
700150	AK700150 In stock	Spacer M8	£0.84 £0.70
700545	AK700545 Available to backorder	Bolt M8x16	£0.68 £0.57
701478	AK701478 Available to backorder	Dome Nut M5	£0.70 £0.58
701672	AK701672 In stock	Screw M8x45	£1.55 £1.29
701756	AK701756 Available to backorder	Screw M5x10	£0.68 £0.57
701889	AK701889 In stock	Washer 8mm	£1.22 £1.02
702737	AK702737 Available to backorder	Screw St4.8x19mm	£0.94 £0.78
704272	AK704272 In stock	Washer 8mm	£0.98 £0.82
704536	AK704536 Out of stock	Nut M6	£0.97 £0.81
704538	AK704538 In stock	Washer M8	£0.98 £0.82
705077	AK705077 Available to backorder	Screw M6x60	£1.02 £0.85
31691330	AK31691330 Available to backorder	Washer	£2.70 £2.25
45273102	AK45273102 Available to backorder	Cover Alko Text( Ak45273140)	£5.28 £4.40
46026901	AK46026940 Available to backorder	Lower Box (Black)	£25.64 £21.37
46027001	AK46027001 Available to backorder	Grassbox Flap	£13.96 £11.63
46027301	AK46027301 Available to backorder	Bearing	£2.36 £1.97
46035802	AK46035801 Available to backorder	Cover - Red	£1.25 £1.04
46036401	AK46036401 Available to backorder	Axle Block	£2.20 £1.83
46051201	AK46051201 Available to backorder	Cap - Pin Retainer	£1.32 £1.10
46235330	AK46235330 Available to backorder	Axle	£46.46 £38.72
46269230	AK462692 Available to backorder	Spacer Case	£2.53 £2.11
46269330	AK46269330 Available to backorder	Front Axle	£37.99 £31.66
46348901	AK46348901 Available to backorder	Cover	£12.72 £10.60
46349001	AK46349001 Available to backorder	Plate	£13.62 £11.35
46350901	AK46350901 Available to backorder	Wheel Cover - Back	£5.22 £4.35
46351001	AK46351040 Available to backorder	Use Ak46351040	£0.86 £0.72
46351901	AK46351901 Available to backorder	Wheel Cover - Front	£5.22 £4.35
46372201	AK46372201 Available to backorder	Ak46372201*	£16.12 £13.43
47002801	AK470028 Available to backorder	Rear Axle Casing	£25.38 £21.15
47450802	AK47450840 Available to backorder	Use Ak47450840	£25.12 £20.93
54467502	AK54467502 In stock	Wingnut M8 - Red	£2.94 £2.45
2147483647	AK4415221002 Available to backorder	Switch Lever	£22.90 £19.08
2147483647	AK4740301014 Available to backorder	Lower Handle	£23.60 £19.67
2147483647	AK4525671014 Available to backorder	Deck	£95.38 £79.48
2147483647	AK4603571014 Available to backorder	Cover Anthracite	£1.18 £0.98
