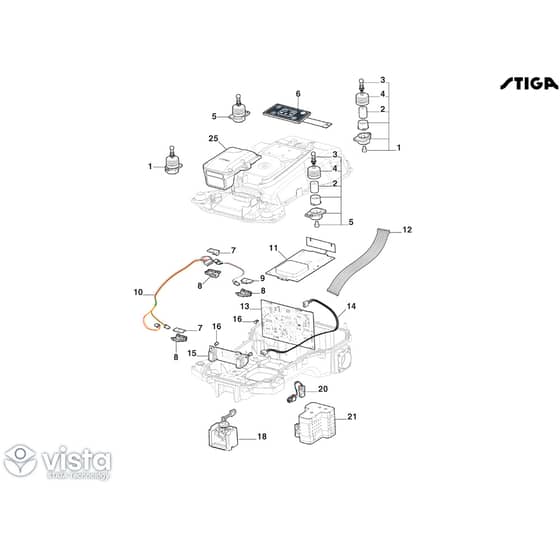

A 8v - 2026 - 2R7114028/ST1 - Stiga Robot Mower Electrical Parts, Boards, Sensors and Displays Diagram

Name: A 8v - 2026 - 2R7114028/ST1 - Stiga Robot Mower Electrical Parts, Boards, Sensors and Displays Diagram
SKU: a_8v_2r7114028_st1_electrical_parts_boards_sensors_and_displays-
Price: 1.29 GBP
Availability: InStock

Part No. a_8v_2r7114028_st1_electrical_parts_boards_sensors_and_displays-

Skip to the end of the images gallery

Skip to the beginning of the images gallery

A 8v - 2026 - 2R7114028/ST1 - Stiga Robot Mower Electrical Parts, Boards, Sensors and Displays Diagram

Description

Stiga A 8v Parts Diagram

Product Name - A 8v

Model Year - 2026

Model Type - SRSV01

Art.N - 2R7114028/ST1

Engine Model -

	Part No.	Details
1	MO381394808/1 Available to backorder	Lift Mechanism	£19.62 £16.35
3	MO322745048/0 Available to backorder	Ball Joint	£3.36 £2.80
4	MO322110088/1 Available to backorder	Bellows	£4.30 £3.58
5	MO381394807/1 Available to backorder	Damper Assy	£20.53 £17.11
6	MO381800401/3 Available to backorder	Keyboard	£89.46 £74.55
7	MO122720216/1 Available to backorder	Electronic Card. Lift	£11.92 £9.93
8	MO322784962/0 Available to backorder	Support	£2.64 £2.20
9	MO122720215/1 Available to backorder	Bump Board	£13.31 £11.09
12	MO122063027/0 Available to backorder	Wiring Harness Power-Logic Board	£12.46 £10.38
13	MO122720245/0 Available to backorder	Power Supply Board	£458.80 £382.33
14	MO122063024/0 Available to backorder	Wiring Harness Signal Receiver-Power Board	£15.54 £12.95
15	MO122720214/1 Available to backorder	Coil Board	£105.52 £87.93
16	MO118737223/0 Available to backorder	Snap Rivet	£1.55 £1.29
20	MO122063031/0 Available to backorder	Wiring Harness Battery-Power Board	£13.79 £11.49
