A 7500 - 2024-2025 - 2R9106128/STX - Stiga Robot Mower Blade and Wheel Motor Diagram

Description

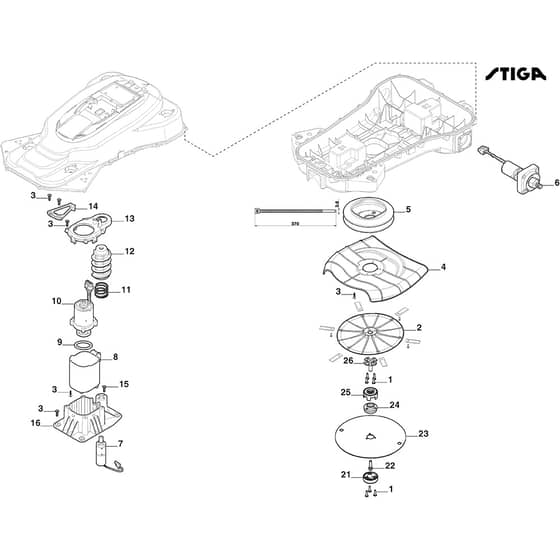

Stiga A 7500 Parts Diagram

Product Name - A 7500

Model Year - 2024-2025

Model Type - SRBA01

Art.N - 2R9106128/STX

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112760712/0 Available to backorder	Screw	£1.54 £1.28
2	MO322465664/0 Available to backorder	Blade Disc	£14.75 £12.29
3	MO112728717/0 Available to backorder	Screw	£1.54 £1.28
4	MO322110187/0 Available to backorder	Guard	£19.97 £16.64
5	MO322110086/0 Available to backorder	Guard	£8.88 £7.40
6	MO381395007/0 Available to backorder	Wheel Engine	£156.97 £130.81
7	MO118563523/0 In stock	Electric Motor	£41.95 £34.96
8	MO322784975/1 Available to backorder	Motor Housing	£7.52 £6.27
9	MO122280004/0 Available to backorder	Motor Gasket	£4.15 £3.46
10	MO381395002/1 Available to backorder	Group Cutting Motor	£138.49 £115.41
11	MO122430257/1 Available to backorder	Spring	£4.04 £3.37
12	MO322784972/0 Available to backorder	Height Adjustment Screw	£11.74 £9.78
13	MO322110186/0 Available to backorder	Cover	£17.76 £14.80
14	MO322784971/0 Available to backorder	Motor Support	£2.69 £2.24
15	MO112726360/0 Available to backorder	Screw	£1.38 £1.15
16	MO322784954/1 Available to backorder	Support	£13.25 £11.04
21	MO322110225/0 Available to backorder	Cover	£4.42 £3.68
22	MO112727803/0 Available to backorder	Screw	£1.55 £1.29
23	MO122465667/0 Available to backorder	Disc	£21.50 £17.92
24	MO181465666/0 Available to backorder	Hub	£15.31 £12.76
25	MO322110224/0 Available to backorder	Protection	£3.40 £2.83
26	MO122465665/0 Available to backorder		£7.74 £6.45
