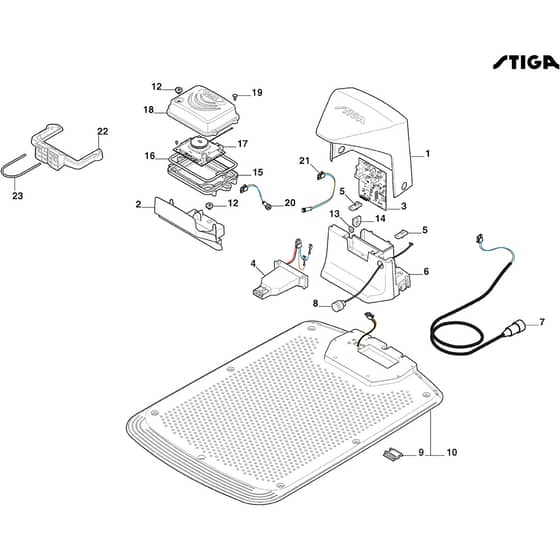

A 750 - 2024-2025 - 2R7101228/ST1 - Stiga Robot Mower Recharging Base Diagram

Description

Stiga A 750 Parts Diagram

Product Name - A 750

Model Year - 2024-2025

Model Type - SRSA01

Art.N - 2R7101228/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO322110131/0 Available to backorder	Cover	£11.51 £9.59
2	MO322110130/0 Available to backorder	Lid	£16.22 £13.52
3	MO122720261/0 Available to backorder	Charging Station Pcb	£191.16 £159.30
4	MO381394805/4 Available to backorder	Charging Contacts	£26.15 £21.79
5	MO381005269/0 Available to backorder	Border Wire Connectors	£4.43 £3.69
6	MO322110101/0 Available to backorder	Pcb Housing	£21.84 £18.20
7	MO122063041/0 Available to backorder	Power Supply Cable	£47.17 £39.31
8	MO122063042/0 Available to backorder	Led Cable	£15.46 £12.88
9	MO322110129/0 Available to backorder	Cover	£3.05 £2.54
10	MO381119732/0 Available to backorder	Charging Base Platform	£80.72 £67.27
12	MO118564534/0 Available to backorder	Snap Vent	£6.73 £5.61
13	MO118564529/0 Available to backorder	Grommet	£6.11 £5.09
14	MO118564528/0 Available to backorder	Grommet	£2.57 £2.14
16	MO122280005/0 Available to backorder	Gasket	£2.29 £1.91
17	MO122720262/0 Available to backorder	Gnss Base Station Board	£633.70 £528.08
18	MO322110164/0 Available to backorder	Upper Box. Gnss	£6.26 £5.22
19	MO112728717/0 Available to backorder	Screw	£1.54 £1.28
20	MO122063048/0 Available to backorder	Cable	£17.38 £14.48
21	MO122063047/0 Available to backorder	Cable	£12.83 £10.69
22	MO322784978/0 Available to backorder	Support	£3.95 £3.29
23	MO381108613/0 Available to backorder		£4.51 £3.76
