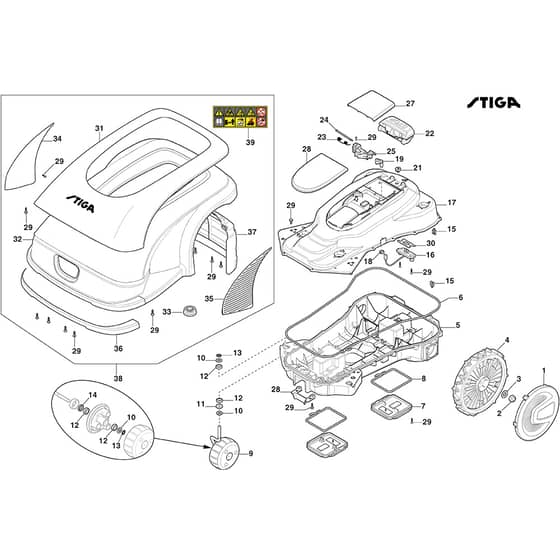

A 3000 - 2022-2025 - 2R9102028/UKS - Stiga Robot Mower Wheels Bodywork Diagram

Name: A 3000 - 2022-2025 - 2R9102028/UKS - Stiga Robot Mower Wheels Bodywork Diagram
SKU: a_3000_2r9102028_uks_wheels_bodywork-group
Price: 1.15 GBP
Availability: InStock

Part No. a_3000_2r9102028_uks_wheels_bodywork-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

A 3000 - 2022-2025 - 2R9102028/UKS - Stiga Robot Mower Wheels Bodywork Diagram

Description

Stiga A 3000 Parts Diagram

Product Name - A 3000

Model Year - 2022-2025

Model Type - SRBA01

Art.N - 2R9102028/UKS

Engine Model -

	Part No.	Details
1	MO322110852/0 Available to backorder	Hub Cap	£41.26 £34.38
2	MO112156603/0 Available to backorder	Nut	£1.63 £1.36
3	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
4	MO381007827/0 Available to backorder	Wheel	£52.75 £43.96
5	MO322110180/0 Available to backorder	Body Work-Lower	£82.91 £69.09
6	MO122280006/0 Available to backorder	Gasket	£7.01 £5.84
7	MO322110082/0 Available to backorder	Battery Cover	£4.72 £3.93
8	MO122280002/0 Available to backorder	Gasket	£1.94 £1.62
9	MO381007825/2 Available to backorder	Wheel	£32.96 £27.47
10	MO112521350/0 In stock	Washer	£1.55 £1.29
11	MO322171011/0 In stock	Spacer	£2.10 £1.75
12	MO119216070/0 In stock	Bearing	£3.17 £2.64
13	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
15	MO133320513/0 Available to backorder	Wire Clip	£1.38 £1.15
16	MO381100606/1 Available to backorder	Rain Contact	£8.59 £7.16
17	MO322110181/0 Available to backorder	Upper Chassis	£53.68 £44.73
18	MO122031500/0 Available to backorder	Ring	£1.38 £1.15
19	MO381100700/0 Available to backorder	Safety Key	£3.06 £2.55
21	MO118564531/0 Available to backorder	Snap Vent From S.N 23JA1RMO000001	£8.46 £7.05
21	MO118564536/0 Available to backorder	Snap Vent To S.N 23lA1RMO999999	£9.78 £8.15
22	MO381600408/1 Available to backorder	Stop Button	£19.42 £16.18
23	MO122430255/0 Available to backorder	Spring	£2.93 £2.44
24	MO122517892/0 Available to backorder	Pin	£2.93 £2.44
25	MO322784973/0 Available to backorder	Support	£3.36 £2.80
27	MO381119742/0 In stock	Display Cover - Epower	£35.60 £29.67
28	MO322820097/1 Available to backorder	Plug	£3.06 £2.55
28	MO381110006/0 Available to backorder	Cover - A 3000	£19.86 £16.55
29	MO112728717/0 Available to backorder	Screw	£1.52 £1.27
30	MO122280000/0 Available to backorder	Gasket	£4.98 £4.15
31	MO381110001/0 Available to backorder	Upper Cover	£119.36 £99.47
32	MO381119735/0 Available to backorder	Upper Cover	£184.64 £153.87
33	MO322122001/1 Available to backorder	Bellows	£3.49 £2.91
39	MO114372745/1 Available to backorder	Pictographs Safety Decal	£3.55 £2.96
