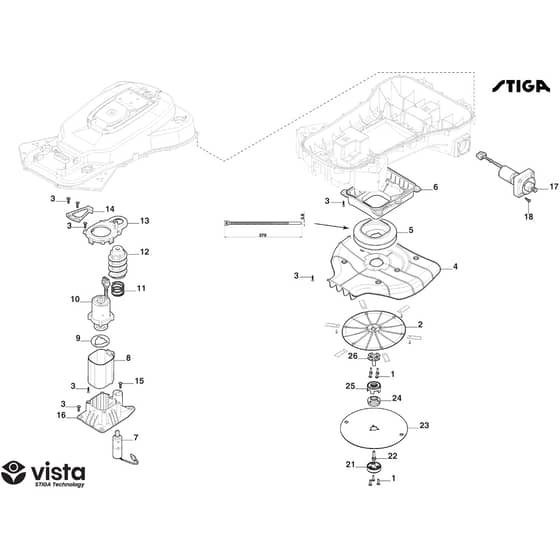

A 100v - 2026 - 2R9117028/STX - Stiga Robot Mower Blade Motor and Wheel Motors Diagram

Description

Stiga A 100v Parts Diagram

Product Name - A 100v

Model Year - 2026

Model Type - SRSV01

Art.N - 2R9117028/STX

Engine Model -

	Part No.	Details
1	MO112760712/0 Available to backorder	Screw	£1.52 £1.27
5	MO322110086/0 In stock	Guard	£8.88 £7.40
7	MO118563523/0 Available to backorder	Electric Motor	£41.95 £34.96
8	MO322784975/1 Available to backorder	Motor Housing	£7.52 £6.27
9	MO122280004/0 Available to backorder	Motor Gasket	£4.15 £3.46
11	MO122430257/1 Available to backorder	Spring	£4.03 £3.36
12	MO322784972/0 Available to backorder	Height Adjustment Screw	£11.74 £9.78
13	MO322110186/0 Available to backorder	Cover	£17.76 £14.80
14	MO322784971/1 Available to backorder	Motor Support	£2.77 £2.31
15	MO112726360/0 Available to backorder	Screw	£1.38 £1.15
16	MO322784954/2 Available to backorder	Support	£13.25 £11.04
17	MO381395007/0 Available to backorder	Wheel Engine	£156.98 £130.82
18	MO112728717/0 Available to backorder	Screw	£1.52 £1.27
21	MO322110225/0 Available to backorder	Cover	£4.40 £3.67
22	MO112727803/0 Available to backorder	Screw	£1.63 £1.36
23	MO122465667/0 Available to backorder	Disc	£21.52 £17.93
24	MO181465666/0 Available to backorder	Hub	£15.31 £12.76
25	MO322110224/0 Available to backorder	Protection	£3.41 £2.84
26	MO122465665/1 Available to backorder	Hub	£13.07 £10.89
