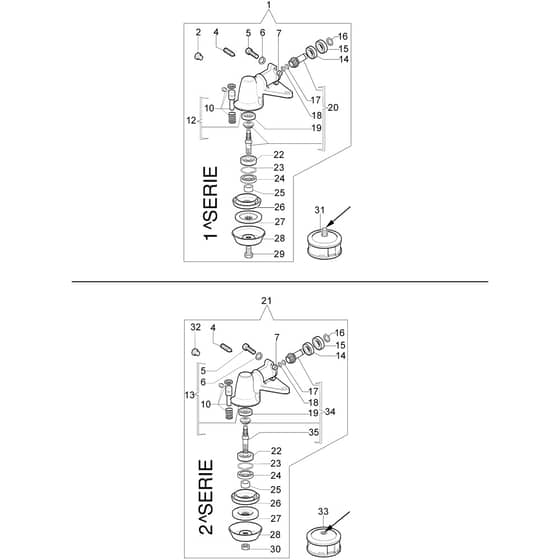

8550 BOSS - - Efco Brushcutter Bevel gear Diagram

Name: 8550 BOSS - - Efco Brushcutter Bevel gear Diagram
SKU: 8550_boss_bevel_gear-group
Price: 0.9 GBP
Availability: InStock

Part No. 8550_boss_bevel_gear-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

8550 BOSS - - Efco Brushcutter Bevel gear Diagram

Description

Efco 8550 BOSS Parts Diagram

Model Year -

	Part No.	Details
2	EF4138428 Available to backorder	Cap	£5.64 £4.70
4	EF3805010 Available to backorder	Screw	£1.08 £0.90
5	EF3801016R Available to backorder	Screw	£1.08 £0.90
6	EF3833073R Available to backorder	Washer	£1.08 £0.90
7	EF3912005 Available to backorder	Nut	£1.08 £0.90
10	EF4174338A Available to backorder	Pin Set	£5.64 £4.70
13	EF61110191 Available to backorder	Gear Case	£59.04 £49.20
14	EF3034019R Available to backorder	Bearing	£5.16 £4.30
15	EF3035023R Available to backorder	Bearing	£16.44 £13.70
16	EF3024012R In stock	Snap Ring	£1.54 £1.28
17	EF4138311A Available to backorder	Ring	£1.08 £0.90
18	EF3025009 Available to backorder	Ring	£1.08 £0.90
19	EF3034218R Available to backorder	Bearing	£13.68 £11.40
20	EF4191233 Available to backorder	Bevel Gear Set	£114.72 £95.60
21	EF61112072BR Available to backorder	Kegelradantrieb Ø32	£199.56 £166.30
22	EF3034012R Available to backorder	Bearing	£15.96 £13.30
23	EF3025022R Available to backorder	Seeger	£1.08 £0.90
24	EF3050023R Available to backorder	Seal Ring	£9.00 £7.50
25	EF4138668 Available to backorder	Spacer	£9.12 £7.60
26	EF4191247R Available to backorder	Hub	£30.12 £25.10
27	EF4179088R Available to backorder	Flange	£17.04 £14.20
29	EF61040074AR In stock	Screw	£3.13 £2.61
30	EF61110075R Available to backorder	Nut	£9.00 £7.50
32	EF61040071R Available to backorder	Cap	£3.84 £3.20
33	EF61459103 Available to backorder	Head Tap&Go	£22.44 £18.70
34	EF61112058 Available to backorder	Bevel Gear Set	£93.48 £77.90
35	EF61110072R Available to backorder	Shaft	£37.56 £31.30
