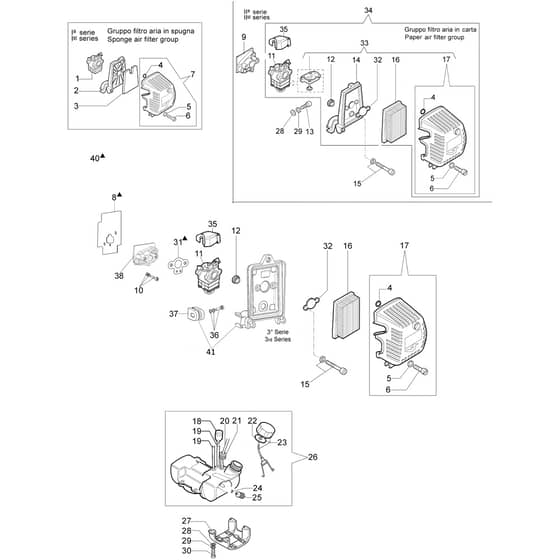

8530 - - Efco Brushcutter Tank and air filter Diagram

Name: 8530 - - Efco Brushcutter Tank and air filter Diagram
SKU: 8530_tank_and_air_filter-group
Price: 0.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

8530 - - Efco Brushcutter Tank and air filter Diagram

Description

Efco 8530 Parts Diagram

Model Year -

Be the first to review this product

0 product questions

	Part No.	Details
2	EF61112003 Available to backorder	Filter Support	£13.64 £11.37
3	EF61110010AR Available to backorder	Air Filter	£3.68 £3.07
4	EF008200282R Available to backorder	O-Ring	£2.44 £2.03
5	EF3916006R Available to backorder	Washer	£0.90 £0.75
6	EF3908036 Available to backorder	Screw	£0.90 £0.75
7	EF61112016 Available to backorder	Filter Cover	£24.82 £20.68
8	EF61110006DR Available to backorder	Gasket	£4.92 £4.10
12	EF61120022 Available to backorder	Gasket	£0.90 £0.75
13	EF3801011R Available to backorder	Screw	£2.44 £2.03
14	EF61120024A Available to backorder	Filter Support	£17.66 £14.72
15	EF61112005 Available to backorder	Screw	£1.84 £1.53

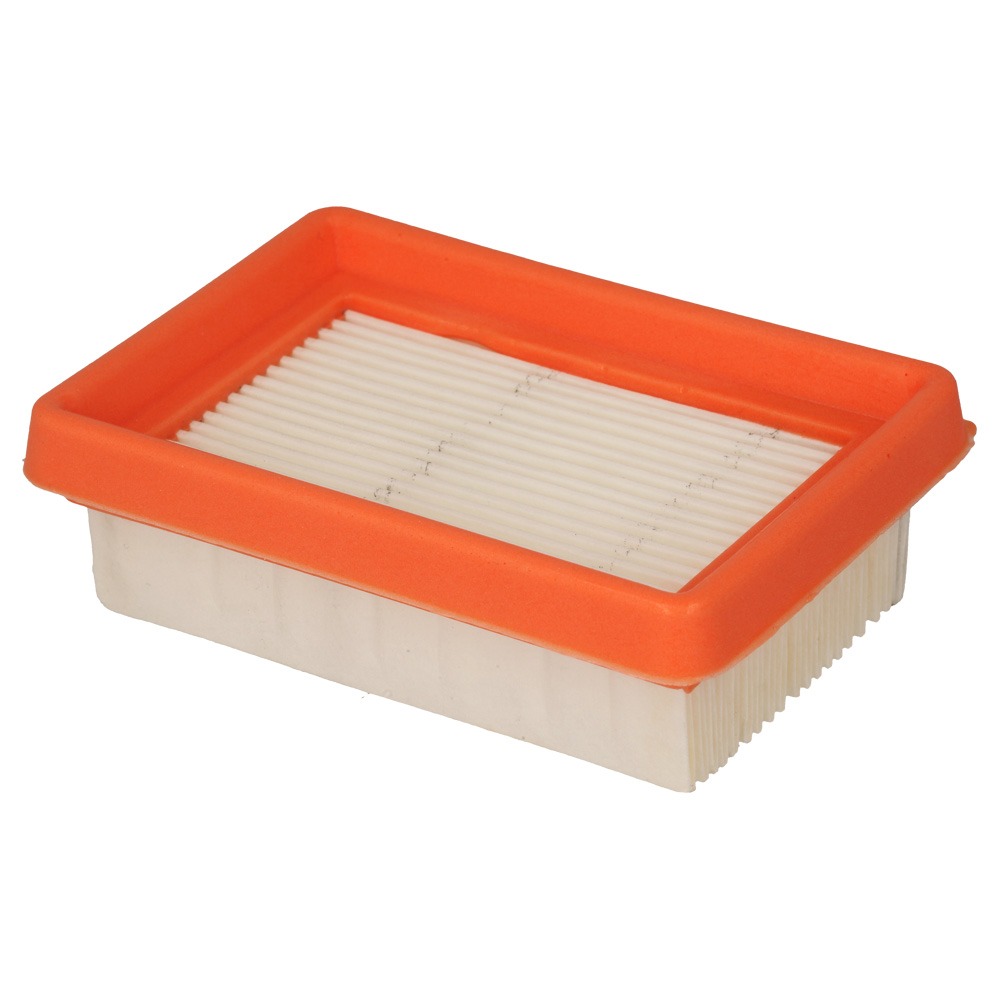

16	EF61120018R Available to backorder	Air Filter	£8.80 £7.33
17	EF61122022BR Available to backorder	Filter Cover	£20.48 £17.07
18	EF61070011AR Available to backorder	Breather Valve	£11.04 £9.20
19	EF50080134R Available to backorder	Tube	£3.78 £3.15
21	EF4161211R Available to backorder	Bush	£1.72 £1.43
22	EF61070006R Available to backorder	Gasket	£2.22 £1.85
23	EF61070079AR Available to backorder	Tank Cap	£9.12 £7.60
24	EF4098377R Available to backorder	Band	£1.84 £1.53
25	EF50010218R Available to backorder	Fuel Filter	£8.74 £7.28
26	EF61110267AR Available to backorder	Tank	£56.90 £47.42
27	EF61040015C Available to backorder	Stand	£8.74 £7.28
28	EF3918005R Available to backorder	Washer	£2.44 £2.03
29	EF3819006R Available to backorder	Washer	£1.32 £1.10
30	EF3801013R Available to backorder	Screw	£0.90 £0.75
31	EF61110008CR Available to backorder	Gasket	£1.84 £1.53
32	EF61120020A Available to backorder	Plate	£1.84 £1.53
34	EF61110098A Available to backorder	Carburetor Kit Wyk-143A	£171.16 £142.63
35	EF61120067R Available to backorder	Cover	£3.44 £2.87
36	EF4175089A Available to backorder	Screw	£0.90 £0.75
38	EF61110279AR Available to backorder	Flange	£18.88 £15.73
40	EF61110068B Available to backorder	Gasket Set	£12.34 £10.28
