8410 - - Efco Brushcutter Engine Diagram

Name: 8410 - - Efco Brushcutter Engine Diagram
SKU: 8410_engine-group
Price: 0.58 GBP
Availability: InStock

Part No. 8410_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

8410 - - Efco Brushcutter Engine Diagram

Description

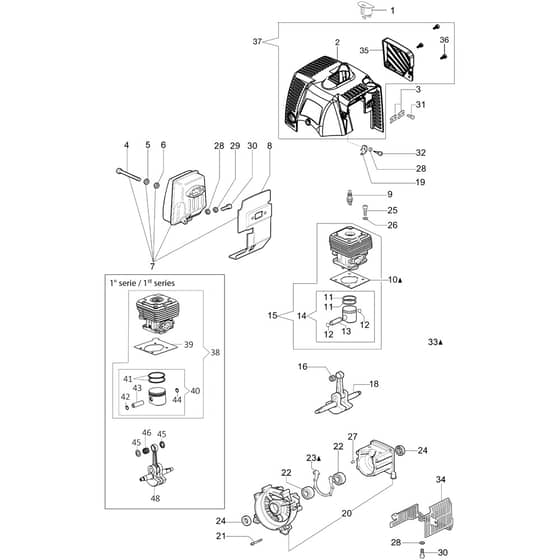

Efco 8410 Parts Diagram

Model Year -

	Part No.	Details
3	EF4191069BR Available to backorder	Plate	£1.08 £0.90
4	EF3801069R Available to backorder	Screw	£9.00 £7.50
5	EF3819036R Available to backorder	Washer	£1.08 £0.90
6	EF3916006R Available to backorder	Washer	£1.08 £0.90
9	2134 In stock	Spark Plug	£2.80 £2.33
15	EF61330227 Available to backorder	Complete Cylinder Ø40	£142.08 £118.40
19	EF61200064R Available to backorder	Stopper	£1.08 £0.90
21	EF3860096R Available to backorder	Screw	£1.08 £0.90
22	EF094000006R Available to backorder	Bearing	£17.40 £14.50
23	EF61200006AR Available to backorder	Gasket	£4.08 £3.40
24	EF094000099R In stock	Seal Ring	£9.00 £7.50
25	EF094000101R Available to backorder	Screw	£1.08 £0.90
26	EF3833073R Available to backorder	Washer	£1.08 £0.90
27	EF3023008 Available to backorder	Plug	£1.08 £0.90
28	EF3916005R In stock	Washer	£1.66 £1.38
29	EF3819006R Available to backorder	Washer	£1.58 £1.32
30	EF3801010R Available to backorder	Screw	£1.37 £1.14
31	EF3960030R Available to backorder	Screw	£2.45 £2.04
32	EF3960069AR Available to backorder	Screw	£1.08 £0.90
33	EF61202038BR Available to backorder	Gasket Set	£9.00 £7.50
35	EF61330079R Available to backorder	Cover	£4.56 £3.80
36	EF3893009R Available to backorder	Screw	£0.70 £0.58
38	EF61330204 Available to backorder	Complete Cylinder Ø40	£164.28 £136.90
39	EF61350272R Available to backorder	Gasket	£3.60 £3.00
40	EF50120034A Available to backorder	Piston Assy Ø40	£40.80 £34.00
41	EF074000405R Available to backorder	Piston Ring	£9.72 £8.10
43	EF50110047R Available to backorder	Piston Pin	£3.84 £3.20
44	EF004900061R Available to backorder	Ring	£2.16 £1.80
45	EF50110043AR Available to backorder	Spacer	£2.00 £1.67
46	EF50110044R In stock	Bearing	£9.46 £7.88
48	EF61200001R Available to backorder	Crankshaft	£100.56 £83.80
