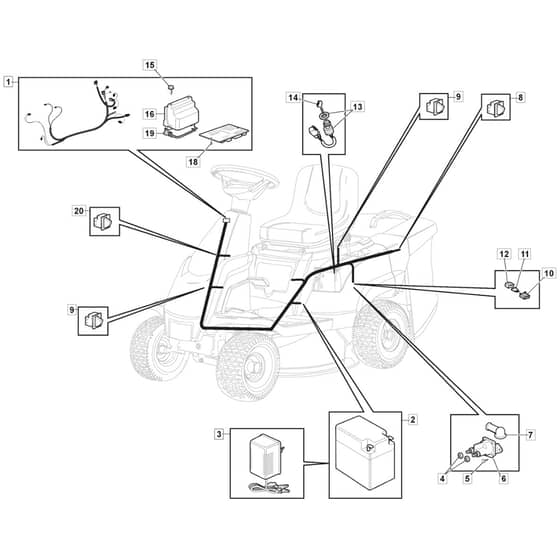

827H - 2016-2023 - 2T0070483/M16 - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield 827H Parts Diagram

Product Name - 827 H

Model Year - 2016-2023

Model Type - MJ 66 E Hydro

Art.N - 2T0070483/M16

Engine Model - ST 250 ES

	Part No.	Details
1	MO384722474/1 In stock	Electronic Card Assy To S.N 22IA3RON003384	£124.86 £104.05
3	MO1134-9250-01 In stock	Battery Charger Kit Uk-Ce Plug CE + BS Plug To S.N 22LA3RON011276	£60.08 £50.07
3	MO182180190/1 In stock	Battery Charger Kit Uk-Ce Plug CE + BS Plug From S.N 22LA3RON011277	£60.08 £50.07
4	MO9743-5121-32 Available to backorder	Nut	£1.46 £1.22
5	MO112735110/0 Available to backorder	Screw	£1.63 £1.36
6	MO118736113/0 In stock	Starter Relay	£38.00 £31.67
7	MO118564861/2 In stock	Protection	£6.77 £5.64
8	MO119410618/0 Available to backorder	Microswitch	£4.78 £3.98
9	MO119410622/1 In stock	Microswitch	£6.64 £5.53
10	MO133500007/0 Available to backorder	Fuse Carrier	£7.31 £6.09
11	MO133340040/0 Available to backorder	Fuse 10 A	£2.24 £1.87
12	MO133215000/0 Available to backorder	Cover	£3.52 £2.93
13	MO118450075/1 In stock	Starting Switch	£24.22 £20.18
14	MO118210023/0 In stock	Starting Key	£7.02 £5.85
15	MO112728711/0 Available to backorder	Screw	£1.39 £1.16
16	MO127600119/0 Available to backorder	Electronis Card Upper Protecti	£124.86 £104.05
18	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
20	MO119410623/0 In stock	Microswitch	£7.62 £6.35
