Toro 81cm Rider - 75501 (322000000 - 322999999) Chassis and Grass Bag

Name: Toro 81cm Rider - 75501 (322000000 - 322999999) Chassis and Grass Bag
SKU: _81cm_rider_75501_322322999999_chassisgrass_bag-group
Price: 0.52 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro 81cm Rider - 75501 (322000000 - 322999999) Chassis and Grass Bag

Description

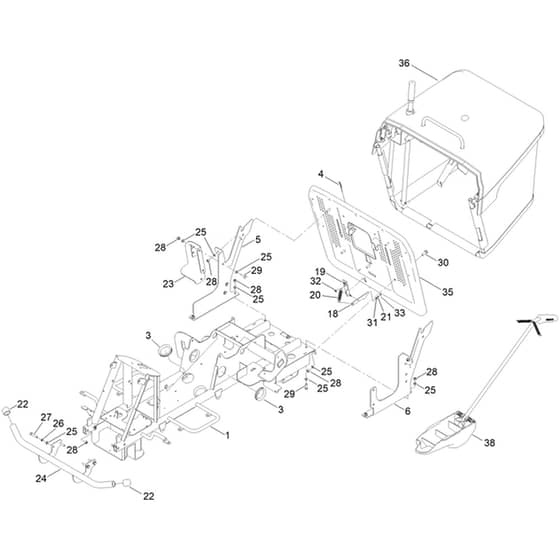

Toro 81cm Rider - 75501 (322000000 - 322999999) Chassis and Grass Bag Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HA134-7137 Available to backorder	Rubber Ring	£4.50 £3.75
4	HA134-7138 Available to backorder	Chute Pin	£2.08 £1.73
5	HA134-7139 Available to backorder	Right Hand Grassbag Mount	£151.22 £126.02
6	HA134-7140 Available to backorder	Left Hand Grassbag Mount	£151.22 £126.02
18	HA134-7152 Available to backorder	Latch Plate For Grassbag	£2.88 £2.40
19	HA134-7153 Available to backorder	Grassbag Latch Bracket	£4.32 £3.60
20	HA134-7154 Available to backorder	Grassbag Latch Spring	£3.36 £2.80
21	HA134-7155 Available to backorder	Spring Washer	£0.62 £0.52
22	HA134-7156 Available to backorder	Bumper Cap	£2.24 £1.87
25	HAZWP1H000U In stock	Washer-Plain	Was £1.63 £1.36 Special Price £1.01 £0.84
26	HA03469 Available to backorder	Washer-Spring	£1.58 £1.32
27	HA09681 Available to backorder	Screw-Hh	£1.58 £1.32
28	HA09441 Available to backorder	Nut-Hex. Ni	£1.56 £1.30
29	HA03162 Available to backorder	Screw-Hh	£1.56 £1.30
31	HA09470 Available to backorder	Washer	£1.42 £1.18
32	HA134-5879 Available to backorder	M5 Nut	£0.62 £0.52
33	HAZDH1E016U Available to backorder	Hex Head Bolt	£199.98 £166.65
35	HA134-7159 Available to backorder	Mounting Plate For Grassbag	£373.20 £311.00
36	HA134-7160 Available to backorder	Grassbag Assembly	£429.60 £358.00
38	HA162-1332 Available to backorder	Kit-Mulch [81cm]	£48.26 £40.22
