Toro 81cm Rider - 75501 (321000000 - 321999999) Deck and Blade

Name: Toro 81cm Rider - 75501 (321000000 - 321999999) Deck and Blade
SKU: _81cm_rider_75501_321321999999_deckblade-group
Price: 0.62 GBP
Availability: InStock

Part No. _81cm_rider_75501_321321999999_deckblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Toro 81cm Rider - 75501 (321000000 - 321999999) Deck and Blade

Description

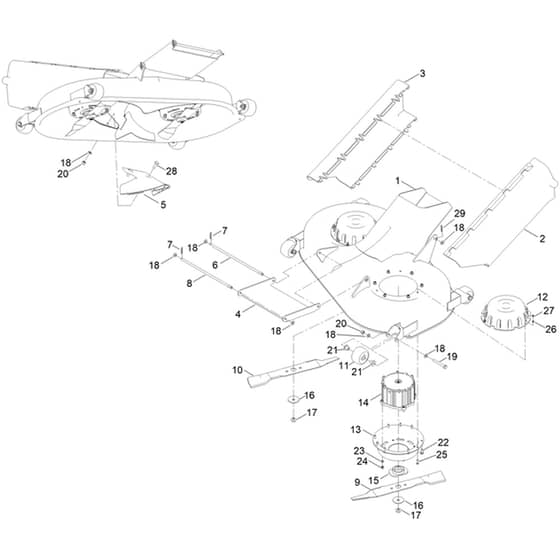

Toro 81cm Rider - 75501 (321000000 - 321999999) Deck and Blade Parts Diagram

	Part No.	Details
1	HA134-7125 Available to backorder	Direct Collect Deck	£517.82 £431.52
2	HA134-7126 Available to backorder	Left Hand (Lh) Deck Chute	£61.57 £51.31
3	HA134-7127 Available to backorder	Right Hand (Rh) Deck Chute	£61.57 £51.31
4	HA134-7128 Available to backorder	Deck Lift	£112.68 £93.90
5	HA134-7129 Available to backorder	Rear Deck Baffle	£14.96 £12.47
6	HA134-7130 Available to backorder	Front Deck Lift Rod	£7.82 £6.52
8	HA134-7132 Available to backorder	Deck Lift Rod	£5.81 £4.84
9	HA134-7133 Available to backorder	Direct Collect Left Hand (Lh) Blade	£48.25 £40.21
10	HA134-7134 Available to backorder	Right Hand (Rh) Direct Collect Blade	£48.25 £40.21
11	HA134-5706 Available to backorder	Deck Wheel	£8.63 £7.19
12	HA134-5721 Available to backorder	Deck Motor Top Cover	£28.28 £23.57
13	HA134-5722 Available to backorder	Deck Motor Bottom Cover	£136.80 £114.00
14	HA134-5723 Available to backorder	Motor. Deck	£451.80 £376.50
15	HA134-5724 Available to backorder	Blade Motor Hub	£14.96 £12.47
16	HA134-5726 Available to backorder	Blade Washer	£9.31 £7.76
17	HA134-5727 Available to backorder	Blade Nut	£1.99 £1.66
18	HAZWP1H000U In stock	Washer-Plain	Was £1.63 £1.36 Special Price £1.01 £0.84
20	HA09441 Available to backorder	Nut-Hex. Ni	£1.76 £1.47
21	HA134-5709 Available to backorder	Insert. Deck Wheel Insert	£0.74 £0.62
23	HAZWP1F000U Available to backorder	Washer	£1.74 £1.45
24	HA09438 Available to backorder	Nut-Nyloc	£1.72 £1.43
25	HAZDH1E016U Available to backorder	Hex Head Bolt	£200.04 £166.70
26	HA09470 Available to backorder	Washer	£1.46 £1.22
27	HA09430 Available to backorder	Nut-Nyloc	£1.46 £1.22
28	HA09373 Available to backorder	Bolt-Coach	£1.66 £1.38
29	HA134-7131 Available to backorder	R Clip	£2.15 £1.79
