727 M - 2014-2015 - 2T0085483/M14 - Mountfield Ride On Mower Peerless Transmission Diagram

Description

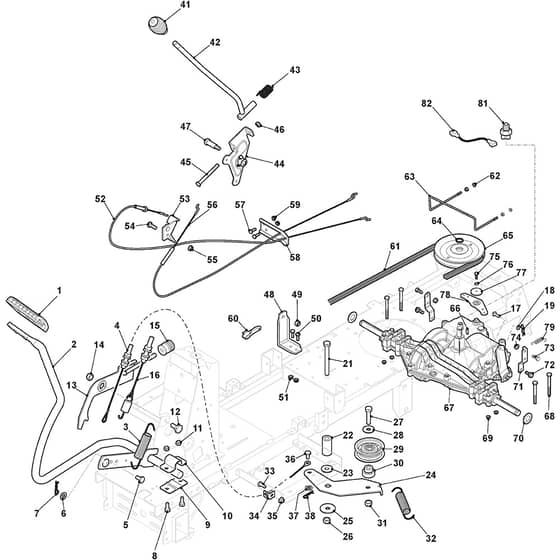

Mountfield 727 M Parts Diagram

Product Name - 727 M

Model Year - 2014-2015

Model Type - MJ 66 E SD

Art.N - 2T0085483/M14

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325110391/0 Available to backorder	Clamp Cover	£6.76 £5.63
2	MO384503013/0 Available to backorder	Pedal	£51.82 £43.18
4	MO384004607/1 Available to backorder	Belt Tension Cable Assembly	£22.81 £19.01
8	MO112791400/0 Available to backorder	Screw	£1.40 £1.17
9	MO325785350/0 Available to backorder	Support	£1.55 £1.29
10	MO325547231/1 Available to backorder	Lifting Deck Axle Plate	£4.37 £3.64
11	MO112154510/0 In stock	Nut	£1.55 £1.29
12	MO122524970/3 Available to backorder	Pin	£1.69 £1.41
13	MO384002097/0 Available to backorder	Brake Control Rod	£14.64 £12.20
14	MO112154210/0 Available to backorder	Nut	£1.69 £1.41
15	MO127395050/1 Available to backorder	Knob	£2.95 £2.46
16	MO384004603/1 Available to backorder	Brake Cable Assy (Me)	£30.97 £25.81
18	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
19	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
21	MO112691910/0 Available to backorder	Screw	£1.73 £1.44
22	MO127160065/0 Available to backorder	Spacer	£6.47 £5.39
23	MO122041980/0 Available to backorder	Bushing	£1.55 £1.29
24	MO384307003/0 Available to backorder	Tightener Lever	£14.35 £11.96
25	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
27	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
28	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
29	MO127604015/0 In stock	Pulley	£13.87 £11.56
30	MO127160064/0 Available to backorder	Spacer	£5.06 £4.22
31	MO112155000/0 In stock	Nut	£1.55 £1.29
32	MO127430594/0 Available to backorder	Spring	£5.64 £4.70
33	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
34	MO322806619/0 Available to backorder	Support	£4.66 £3.88
35	MO112292102/0 In stock	Nut	£1.69 £1.41
36	MO127510120/1 Available to backorder	Pin	£4.24 £3.53
37	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
41	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
42	MO384317097/0 Available to backorder	Lever. Speed Drive Control	£31.60 £26.33
43	MO125430226/0 Available to backorder	Spring	£2.26 £1.88
44	MO384773579/0 Available to backorder	Bracket	£17.87 £14.89
45	MO112692050/0 Available to backorder	Screw	£1.82 £1.52
47	MO127510122/1 Available to backorder	Bracket	£5.92 £4.93
48	MO327772197/0 Available to backorder	Bracket	£6.05 £5.04
52	MO384004602/1 Available to backorder	Gear Shift Cable Assy (Reverse)	£19.37 £16.14
53	MO327772195/0 Available to backorder	Front Bracket	£5.48 £4.57
54	MO112792611/0 Available to backorder	Screw	£1.55 £1.29
55	MO112293201/0 In stock	Nut	£1.69 £1.41
56	MO384004609/1 Available to backorder	Gear Shift Cable Assy (Forward)	£19.37 £16.14
58	MO327787093/0 Available to backorder	Support	£5.92 £4.93
60	MO327110509/0 Available to backorder	Central Closing Cover	£4.22 £3.52
61	MO135061430/0 Available to backorder	Belt	£39.05 £32.54
63	MO127294011/0 Available to backorder	Belt Guide	£15.34 £12.78
64	MO112608950/0 Available to backorder	Seeger	£1.55 £1.29
65	MO182601509/0 Available to backorder	Pulley	£76.72 £63.93
66	MO112139430/0 In stock	Key	£1.97 £1.64
67	MO118400981/1 Available to backorder	Mechanical Transaxle - Peerless (Mst-204-581A)	£582.05 £485.04
68	MO112691800/0 Available to backorder	Screw	£1.55 £1.29
70	MO125670005/2 In stock	Washer	£4.08 £3.40
71	MO327772189/0 Available to backorder	Bracket	£4.08 £3.40
72	MO112735150/0 Available to backorder	Screw	£1.69 £1.41
82	MO127065069/0 Available to backorder	Wire	£7.19 £5.99
