727 HB - 2014 - 2T0105283/MFR - Mountfield Ride On Mower Body Diagram

Description

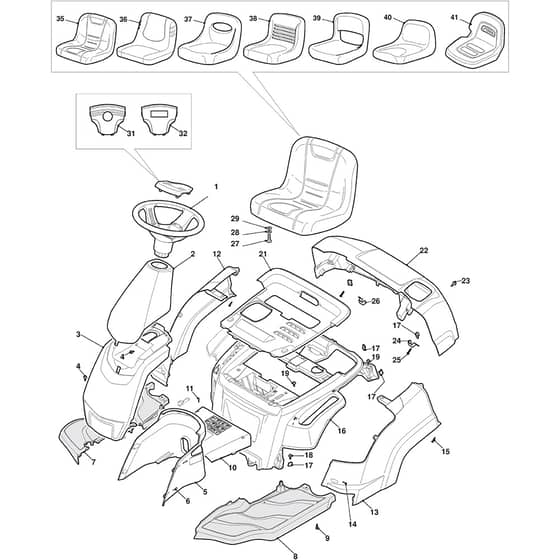

Mountfield 727 HB Parts Diagram

Product Name - 727 HB

Model Year - 2014

Model Type - MJ 66 E Hydro SD

Art.N - 2T0105283/MFR

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO325961220/0 Available to backorder	Steering Wheel	£52.08 £43.40
2	MO327110487/0 Available to backorder	Upper Steering Cover. Black	£26.33 £21.94
3	MO327110510/0 In stock	Front Steering Cover. Red	£36.59 £30.49
4	MO125943010/0 Available to backorder	Screw	£1.97 £1.64
5	MO327110522/0 Available to backorder	Rear Steering Column Cover. Black	£25.48 £21.23
7	MO327500501/0 Available to backorder	Right Footboard	£33.79 £28.16
8	MO327500500/0 Available to backorder	Left Footboard	£39.42 £32.85
9	MO112735402/0 Available to backorder	Screw	£1.55 £1.29
10	MO327110568/0 Available to backorder	Central Cover. Black	£18.16 £15.13
11	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
12	MO327110511/0 In stock	Right Rear Wheel Cover. Red	£30.97 £25.81
13	MO327110512/0 In stock	Left Rear Cover. Red	£30.97 £25.81
14	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
16	MO327110521/1 Available to backorder	Frame Cover Black	£81.66 £68.05
17	MO112437507/0 Available to backorder	Rapid Fixing Plate	£1.69 £1.41
21	MO327110481/1 Available to backorder	Engine Cover Black	£29.28 £24.40
22	MO327110544/0 Available to backorder	Rear Cover Upper Part. Red	£43.28 £36.07
27	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
28	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
29	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
31	MO325580503/0 Available to backorder	Steering Plate Cover	£6.05 £5.04
38	MO125722471/0 In stock	Seat	£190.04 £158.37
