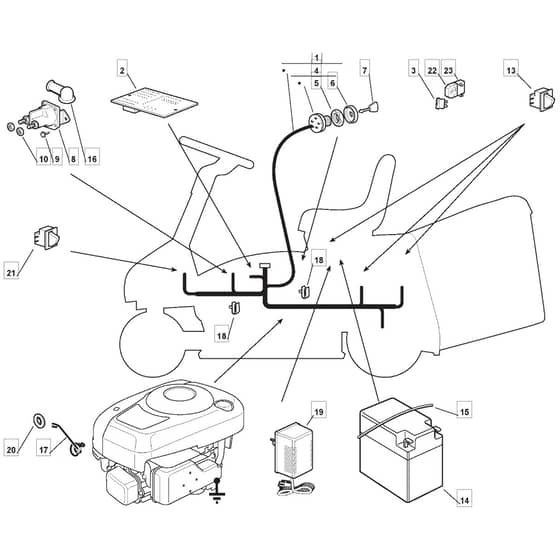

725V - 2011-2013 - 2T0314483/UM9 - Mountfield Ride On Mower Electrics Diagram

Name: 725V - 2011-2013 - 2T0314483/UM9 - Mountfield Ride On Mower Electrics Diagram
SKU: 725v_2t0314483_um9_electrics-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725V - 2011-2013 - 2T0314483/UM9 - Mountfield Ride On Mower Electrics Diagram

Description

Mountfield 725V Parts Diagram

Product Name - 725 V

Model Year - 2011-2013

Model Type - ELV 63

Art.N - 2T0314483/UM9

Be the first to review this product

0 product questions

	Part No.	Details
1	MO184040123/1 Available to backorder	Cables Ass.Y From 01-9-2005	£146.03 £121.69
2	MO127722354/2 In stock	Electronic Card	£100.44 £83.70
3	MO133340040/0 Available to backorder	Fuse 10 A	£2.26 £1.88
4	MO118450065/1 Available to backorder	Starting Switch	£36.56 £30.47
5	MO118400861/0 Available to backorder	Screwed Ring	£6.05 £5.04
6	MO118565351/0 Available to backorder	Screwed Ring Protection	£7.03 £5.86
7	MO118210016/1 Available to backorder	Starting Key	£12.82 £10.68
8	MO118736112/0 In stock	Starter Relay	£38.00 £31.67
9	MO112735110/0 Available to backorder	Screw	£1.55 £1.29
10	MO9743-5121-32 Available to backorder	Nut	£1.40 £1.17
13	MO119410622/1 In stock	Microswitch	£6.62 £5.52
15	MO127430572/0 Available to backorder	Spring	£1.82 £1.52
16	MO118564861/2 Available to backorder	Protection	£6.76 £5.63
17	MO127430557/0 Available to backorder	Spring	£3.52 £2.93
18	MO133320506/0 Available to backorder	Fairlead	£1.40 £1.17
19	MO1134-9250-01 In stock	Battery Charger	£60.06 £50.05
20	MO112523020/0 In stock	Washer	£1.55 £1.29
21	MO119410623/0 Available to backorder	Microswitch	£7.62 £6.35
22	MO133215000/0 Available to backorder	Cover From 01-9-2007	£3.52 £2.93
23	MO133500007/0 Available to backorder	Fuse Holder	£7.31 £6.09
