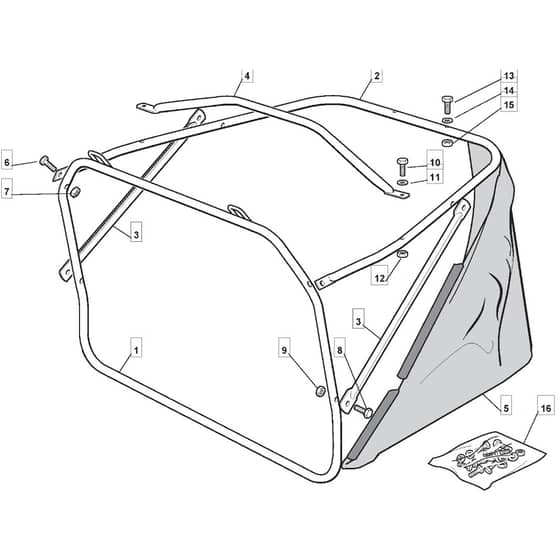

725V - 2009 - 2T0312483/UM9 - Mountfield Ride On Mower Grasscatcher Diagram

Part No. 725v_2t0312483_um9_grasscatcher-group
725V - 2009 - 2T0312483/UM9 - Mountfield Ride On Mower Grasscatcher Diagram
725V - 2009 - 2T0312483/UM9 - Mountfield Ride On Mower Grasscatcher Diagram

Description

Mountfield 725V Parts Diagram

Product Name - 725 V

Model Year - 2009

Model Type - ELV 63

Art.N - 2T0312483/UM9

Ref. Img. Part No. Details
  1 Front Frame
Front Frame
MO384801121/0
Available to backorder
Front Frame
£52.08 £43.40

  3 Stiffening
Stiffening
MO327650129/0
Available to backorder
Stiffening
£7.31 £6.09

  4 Handle
Handle
MO384394051/0
Available to backorder
Handle
£17.17 £14.31

  8 Screw
Screw
MO112789020/0
Available to backorder
Screw
£1.62 £1.35

  10 Screw
Screw
MO112789210/0
Available to backorder
Screw
£1.55 £1.29

  13 Screw
Screw
MO112674530/0
Available to backorder
Screw
£1.55 £1.29

  14 Washer
Washer
MO112521331/0
Available to backorder
Washer
£1.55 £1.29

  15 Nut
Nut
MO112154330/0
In stock
Nut
£1.55 £1.29


Description

Mountfield 725V Parts Diagram

Product Name - 725 V

Model Year - 2009

Model Type - ELV 63

Art.N - 2T0312483/UM9
