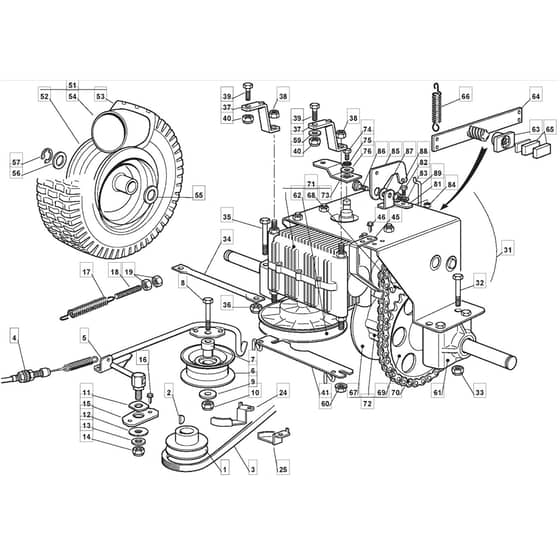

725M - 2009 - 2T0114483/UM9 - Mountfield Ride On Mower Transmission Diagram

Name: 725M - 2009 - 2T0114483/UM9 - Mountfield Ride On Mower Transmission Diagram
SKU: 725m_2t0114483_um9_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. 725m_2t0114483_um9_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2009 - 2T0114483/UM9 - Mountfield Ride On Mower Transmission Diagram

Description

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2009

Model Type - EL 63

Art.N - 2T0114483/UM9

	Part No.	Details
2	MO112139100/0 In stock	Key	£1.55 £1.29
3	MO135061406/0 In stock	Belt	£41.75 £34.79
4	MO384207103/2 Available to backorder	Cable	£17.74 £14.78
6	MO127604007/0 Available to backorder	Guide Pulley	£50.69 £42.24
8	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
11	MO327670054/0 Available to backorder	Washer	£13.68 £11.40
13	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
13	MO112523060/0 In stock	Washer To 31-8-2003	£1.55 £1.29
16	MO112735120/0 Available to backorder	Screw To 31-8-2003	£1.55 £1.29
16	MO112735122/0 Available to backorder	Screw	£1.55 £1.29
17	MO125430219/1 Available to backorder	Spring	£3.66 £3.05
18	MO125840005/0 Available to backorder	Tie Rod	£2.94 £2.45
19	MO112293200/0 In stock	Nut	£1.55 £1.29
25	MO327546043/0 Available to backorder	Left Plate	£4.64 £3.87
32	MO112692050/0 In stock	Screw	£1.84 £1.53
33	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
35	MO125943001/0 Available to backorder	Screw	£1.55 £1.29
39	MO112792611/0 In stock	Screw To 31-8-2003	£1.55 £1.29
39	MO112793701/0 In stock	Screw	£1.55 £1.29
40	MO112155000/0 In stock	Nut To 31-8-2003	£1.55 £1.29
45	MO384394830/0 Available to backorder	Overinjected Chain Tightener	£31.49 £26.24
46	MO112735104/0 Available to backorder	Screw	£1.55 £1.29
51	MO384680075/0 Available to backorder	Rear Wheel	£92.86 £77.38
52	MO184044013/0 Available to backorder	Rimm	£54.37 £45.31
53	MO127590059/0 Available to backorder	Tyre 13X5.00-6 Kings	£53.50 £44.58
54	MO127590057/0 Available to backorder	Inner Tube	£16.48 £13.73
55	MO112521410/0 Available to backorder	Washer	£1.92 £1.60
55	MO112520010/0 Available to backorder	Washer To 31-8-2003	£2.24 £1.87
56	MO125670005/2 In stock	Washer	£4.08 £3.40
57	MO112001010/0 In stock	Benzing Ring	£1.84 £1.53
59	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
60	MO112293201/0 In stock	Nut	£1.70 £1.42
62	MO119700050/0 In stock	Pulley	£21.95 £18.29
65	MO119700052/0 Available to backorder	Pad	£43.66 £36.38
66	MO119700048/0 Available to backorder	Spring	£3.52 £2.93
67	MO119700054/0 Available to backorder	Brake Disc	£37.90 £31.58
68	MO119700049/0 Available to backorder	Pinion	£11.26 £9.38
69	MO119700055/0 Available to backorder	Ring Gear	£21.54 £17.95
70	MO119700047/0 Available to backorder	Chain	£60.54 £50.45
72	MO118400971/1 Available to backorder	Differential	£344.90 £287.42
