725M - 2009 - 2T0112483/UM9 - Mountfield Ride On Mower Deck Lifting Diagram

Name: 725M - 2009 - 2T0112483/UM9 - Mountfield Ride On Mower Deck Lifting Diagram
SKU: 725m_2t0112483_um9_deck_lifting-group
Price: 1.16 GBP
Availability: InStock

Part No. 725m_2t0112483_um9_deck_lifting-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2009 - 2T0112483/UM9 - Mountfield Ride On Mower Deck Lifting Diagram

Description

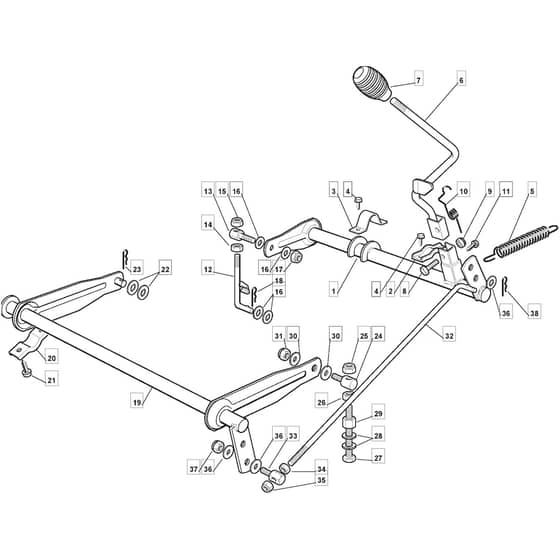

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2009

Model Type - EL 63

Art.N - 2T0112483/UM9

	Part No.	Details
3	MO325547037/2 Available to backorder	Plate	£3.38 £2.82
5	MO127430568/0 Available to backorder	Spring	£5.09 £4.24
7	MO125394510/0 In stock	Knob	£4.24 £3.53
8	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
9	MO112154510/0 In stock	Nut	£1.55 £1.29
11	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
11	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
12	MO384002073/0 Available to backorder	Lifting Rod	£20.29 £16.91
13	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
20	MO327546015/2 Available to backorder	Plate	£1.55 £1.29
21	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
24	MO125510007/2 Available to backorder	Pin	£5.65 £4.71
26	MO112295200/0 In stock	Nut	£1.39 £1.16
27	MO112794970/0 In stock	Screw	£3.38 £2.82
28	MO112521360/0 In stock	Washer	£1.55 £1.29
29	MO112154250/0 Available to backorder	Nut	£4.78 £3.98
30	MO325670008/1 In stock	Washer	£1.55 £1.29
31	MO112156602/0 In stock	Nut	£1.39 £1.16
32	MO127034065/0 Available to backorder	Lifting Deck Control Rod	£65.12 £54.27
33	MO125510040/2 Available to backorder	Pin	£5.76 £4.80
34	MO112293200/0 In stock	Nut	£1.55 £1.29
36	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
37	MO112155000/0 In stock	Nut	£1.55 £1.29
38	MO124487997/0 In stock	Spring Clip D.1.8	£1.55 £1.29
