725M - 2007 - 299971583/ME7 - Mountfield Ride On Mower Steering Diagram

Name: 725M - 2007 - 299971583/ME7 - Mountfield Ride On Mower Steering Diagram
SKU: 725m_299971583_me7_steering-group
Price: 1.16 GBP
Availability: InStock

Part No. 725m_299971583_me7_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

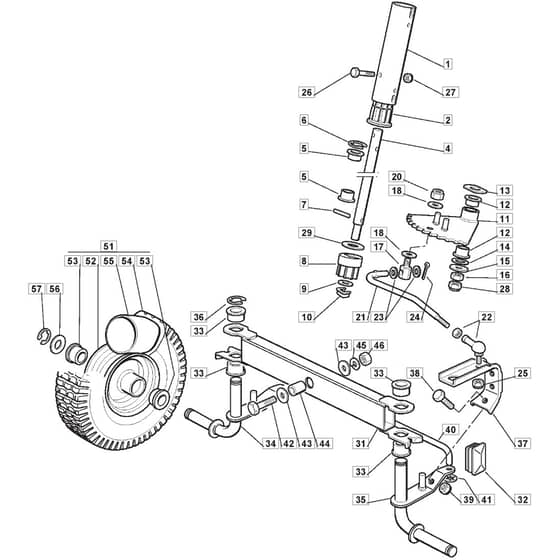

725M - 2007 - 299971583/ME7 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2007

Model Type - EL 63

Art.N - 299971583/ME7

	Part No.	Details
2	MO127047005/1 Available to backorder	Bushing	£31.49 £26.24
4	MO127520052/0LC Available to backorder	Steering Column	£67.57 £56.31
5	MO127047004/0 Available to backorder	Bushing	£2.59 £2.16
6	MO112001010/0 In stock	Benzing Ring	£1.84 £1.53
7	MO112622650/0 Available to backorder	Dowel Pin	£1.79 £1.49
8	MO127570050/0 Available to backorder	Pinion	£11.12 £9.27
9	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
10	MO112436030/0 In stock	Plate	£1.84 £1.53
11	MO384735553/1 Available to backorder	Ring Gear	£32.38 £26.98
13	MO327670054/0 Available to backorder	Washer	£13.68 £11.40
14	MO322672152/0 Available to backorder	Antifriction Washer	£1.84 £1.53
15	MO112523070/0 Available to backorder	Washer	£1.55 £1.29
16	MO112293200/0 In stock	Nut	£1.55 £1.29
17	MO125510056/1 Available to backorder	Pin	£5.35 £4.46
18	MO325670008/1 In stock	Washer	£1.55 £1.29
20	MO112156602/0 In stock	Nut	£1.39 £1.16
21	MO127034066/2 Available to backorder	Steering Control Rod	£46.48 £38.73
57	MO112000970/0 In stock	Circlip D.12 Acc.C60 Din 6799	£1.55 £1.29
