725M - 2007 - 299971583/ME7 - Mountfield Ride On Mower Clutch Diagram

Description

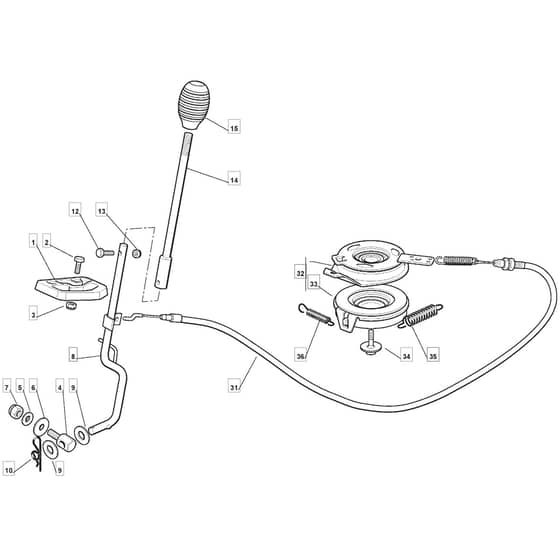

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2007

Model Type - EL 63

Art.N - 299971583/ME7

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127487001/0 Available to backorder	Plastic Guide For Pto Lever	£7.85 £6.54
2	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
3	MO112154510/0 In stock	Nut	£1.55 £1.29
4	MO127510107/0 Available to backorder	Fulcrum Pin	£5.48 £4.57
5	MO325670011/0 Available to backorder	Antifriction Washer	£1.55 £1.29
6	MO322672152/0 Available to backorder	Antifriction Washer	£1.82 £1.52
7	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO321660100/0 Available to backorder	Washer	£1.97 £1.64
10	MO124487998/0 In stock	Cotter Pin	£0.65 £0.54
12	MO112789020/0 Available to backorder	Screw	£1.54 £1.28
13	MO112154330/0 In stock	Nut	£1.55 £1.29
14	MO184317079/0 Available to backorder	Gearshift	£18.72 £15.60
15	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
31	MO384207104/1 Available to backorder	Blades Engagement Wire	£30.97 £25.81
32	MO118399065/1 Available to backorder	Mechanical Clutch Ass.Y	£246.96 £205.80
33	MO118399066/1 Available to backorder	Clutch Lower Part El 63	£209.76 £174.80
34	MO112735460/0 Available to backorder	Screw	£9.28 £7.73
35	MO127430579/0 Available to backorder	Clutch Spring From 01-9-2002	£12.86 £10.72
35	MO127430571/0 Available to backorder	Spring To 31-8-2002	£4.66 £3.88
36	MO122450110/0 In stock	Roller Spring	£7.46 £6.22
