725M - 2006 - 13-2657-16 - Mountfield Ride On Mower Seat Diagram

Description

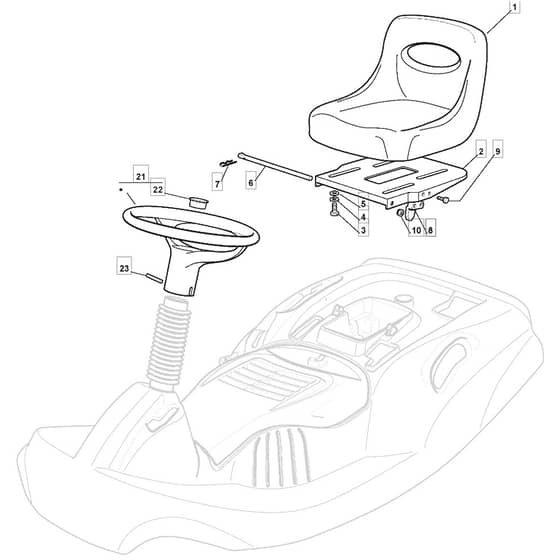

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2006

Model Type - EL 63

Art.N - 13-2657-16

	Part No.	Details
1	MO125722463/0 Available to backorder	Seat	£204.13 £170.11
3	MO112793101/0 In stock	Screw	£1.55 £1.29
4	MO112583500/0 In stock	Grower	£1.55 £1.29
5	MO112523060/0 In stock	Washer	£1.55 £1.29
6	MO127864052/1 Available to backorder	Seat Fulcrum Rod	£6.64 £5.53
7	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
8	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
9	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
10	MO112154330/0 In stock	Nut	£1.55 £1.29
22	MO325120230/0 Available to backorder	Cover	£3.10 £2.58
23	MO112620305/0 Available to backorder	Spirol Pin 6 X 55	£1.84 £1.53
