725M - 2003 - 13-2658-13 - Mountfield Ride On Mower Clutch Diagram

Description

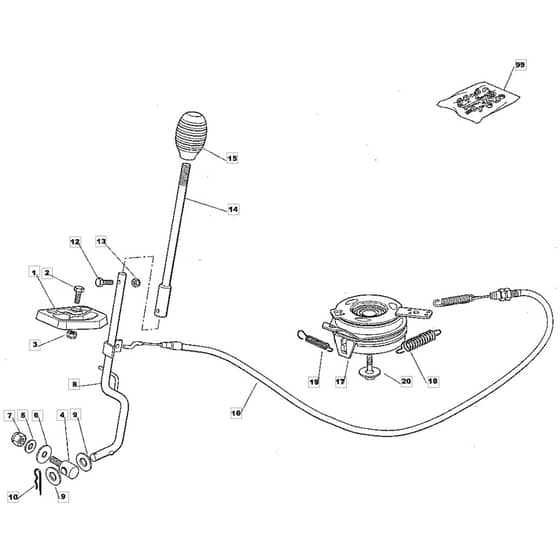

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2003

Model Type - EL 63

Art.N - 13-2658-13

	Part No.	Details
1	MO127487001/0 Available to backorder	Gliding Shoe	£7.86 £6.55
2	MO112791200/1 In stock	Screw	£1.55 £1.29
3	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
4	MO127510107/0 Available to backorder	Pin	£5.47 £4.56
5	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
6	MO322672152/0 Available to backorder	Washer	£1.84 £1.53
7	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
9	MO321660100/0 Available to backorder	Thrust Easher	£1.97 £1.64
10	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
12	MO112789020/0 Available to backorder	Screw	£1.62 £1.35
13	MO112154330/0 In stock	Nut	£1.55 £1.29
14	MO184317079/0 Available to backorder	Engagement Lever-Upper	£18.72 £15.60
15	MO125394510/0 In stock	Knob	£4.24 £3.53
16	MO384207104/1 Available to backorder	Wire	£30.98 £25.82
17	MO118399065/1 Available to backorder	Mechanical Clutch Ass.Y	£260.45 £217.04
18	MO127430579/0 Available to backorder	Spring	£12.88 £10.73
19	MO122450110/0 In stock	Spring	£7.46 £6.22
20	MO112735460/0 Available to backorder	Screw	£9.28 £7.73
