725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Controls Diagram

Name: 725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Controls Diagram
SKU: 725m_13_2657_32_controls-group
Price: 1.24 GBP
Availability: InStock

Part No. 725m_13_2657_32_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Controls Diagram

Description

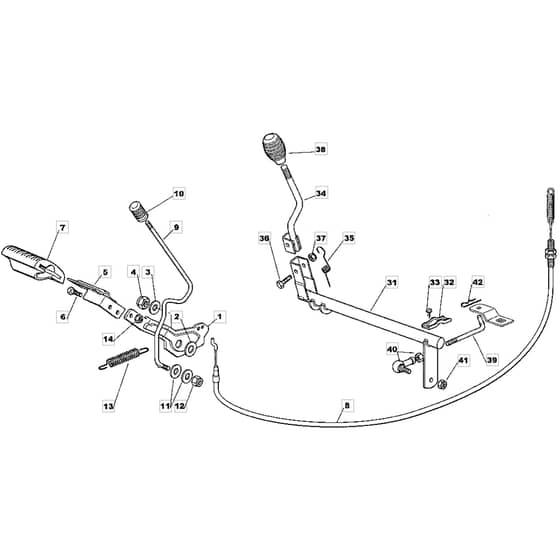

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2002

Model Type - EL 63

Art.N - 13-2657-32

	Part No.	Details
1	MO327500051/1 Available to backorder	Pedal	£7.31 £6.09
2	MO327670054/0 Available to backorder	Washer	£13.68 £11.40
6	MO112791200/1 In stock	Screw	£1.55 £1.29
7	MO125110269/0 Available to backorder	Pedal Cover	£3.66 £3.05
10	MO127395050/1 Available to backorder	Knob	£2.94 £2.45
11	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
13	MO127430564/0 Available to backorder	Spring	£1.97 £1.64
14	MO112292102/0 In stock	Nut	£1.70 £1.42
31	MO384001021/0 Available to backorder	Axle	£25.76 £21.47
32	MO327546015/2 Available to backorder	Clamp	£1.55 £1.29
33	MO112729601/1 Available to backorder	Screw	£1.49 £1.24
36	MO112674700/0 Available to backorder	Screw	£1.63 £1.36
37	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
38	MO125394510/0 In stock	Knob	£4.24 £3.53
40	MO122746610/0 Available to backorder	Ball Joint	£21.12 £17.60
41	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
42	MO124487997/0 In stock	Hair Pin	£1.55 £1.29
