725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Body Diagram

Name: 725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Body Diagram
SKU: 725m_13_2657_32_body-group
Price: 1.22 GBP
Availability: InStock

Part No. 725m_13_2657_32_body-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2002 - 13-2657-32 - Mountfield Ride On Mower Body Diagram

Description

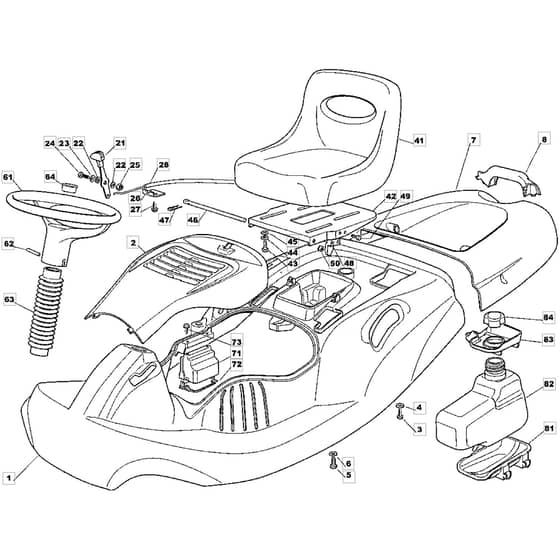

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2002

Model Type - EL 63

Art.N - 13-2657-32

	Part No.	Details
3	MO112735410/0 Available to backorder	Screw	£1.63 £1.36
5	MO112735402/0 In stock	Screw	£1.55 £1.29
6	MO112521360/0 In stock	Washer	£1.55 £1.29
7	MO327110357/1 Available to backorder	Grass Catcher Cover-Red	£71.81 £59.84
8	MO127394000/0 Available to backorder	Handle	£15.76 £13.13
21	MO381007280/2 Available to backorder	Throttle Lever	£3.25 £2.71
22	MO112523040/0 In stock	Washer	£1.55 £1.29
23	MO112530060/0 Available to backorder	Washer	£1.46 £1.22
24	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
25	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
26	MO322981467/0 Available to backorder	Plate	£1.55 £1.29
28	MO184000252/0 Available to backorder	Throttle Cable	£9.07 £7.56
43	MO9997-0820-16 In stock	Screw	£1.55 £1.29
44	MO112583500/0 In stock	Washer	£1.55 £1.29
45	MO112523060/0 In stock	Washer	£1.55 £1.29
46	MO127864052/1 Available to backorder	Pin	£6.64 £5.53
47	MO124487997/0 In stock	Hair Pin	£1.55 £1.29
48	MO327063021/1 Available to backorder	Cam	£7.86 £6.55
49	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
50	MO112154330/0 In stock	Nut	£1.55 £1.29
62	MO112620305/0 Available to backorder	Pin	£1.84 £1.53
63	MO127600114/1 Available to backorder	Guard	£8.93 £7.44
64	MO325120230/0 Available to backorder	Cap	£3.10 £2.58
71	MO127600119/0 Available to backorder	Guard	£124.86 £104.05
73	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
83	MO127600113/0 Available to backorder	Guard	£1.97 £1.64
84	MO127790000/1 In stock	Tank Cap	£6.37 £5.31
