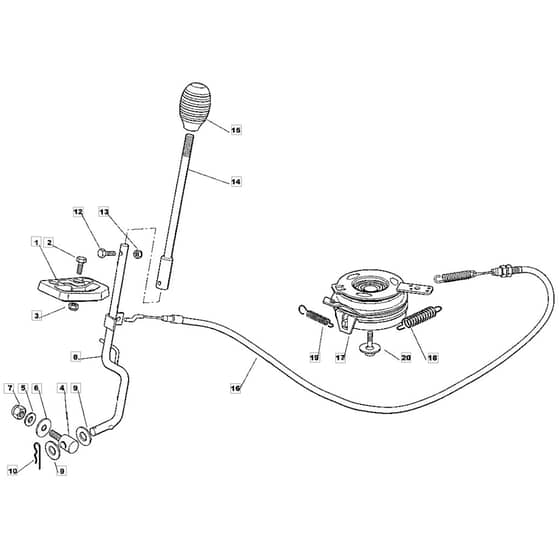

725M - 2002 - 13-2657-12 - Mountfield Ride On Mower Clutch Diagram

Name: 725M - 2002 - 13-2657-12 - Mountfield Ride On Mower Clutch Diagram
SKU: 725m_13_2657_12_clutch-group
Price: 1.12 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

725M - 2002 - 13-2657-12 - Mountfield Ride On Mower Clutch Diagram

Description

Mountfield 725M Parts Diagram

Product Name - 725 M

Model Year - 2002

Model Type - EL 63

Art.N - 13-2657-12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127487001/0 Available to backorder	Gliding Shoe	£7.85 £6.54
2	MO112791200/1 Available to backorder	Screw	£1.34 £1.12
3	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
4	MO127510107/0 Available to backorder	Pin	£5.48 £4.57
5	MO325670011/0 Available to backorder	Washer	£1.55 £1.29
6	MO322672152/0 Available to backorder	Washer	£1.82 £1.52
7	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
9	MO321660100/0 Available to backorder	Thrust Easher	£1.97 £1.64
10	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
12	MO112789020/0 Available to backorder	Screw	£1.54 £1.28
13	MO112154330/0 In stock	Nut	£1.55 £1.29
14	MO184317079/0 Available to backorder	Engagement Lever-Upper	£18.72 £15.60
15	MO125394510/0 Available to backorder	Knob	£4.07 £3.39
16	MO384207104/1 Available to backorder	Wire	£30.97 £25.81
17	MO118399065/1 Available to backorder	Mechanical Clutch Ass.Y	£246.96 £205.80
18	MO127430571/0 Available to backorder	Spring	£4.66 £3.88
19	MO122450110/0 In stock	Spring	£7.46 £6.22
20	MO112735460/0 Available to backorder	Screw	£9.28 £7.73
