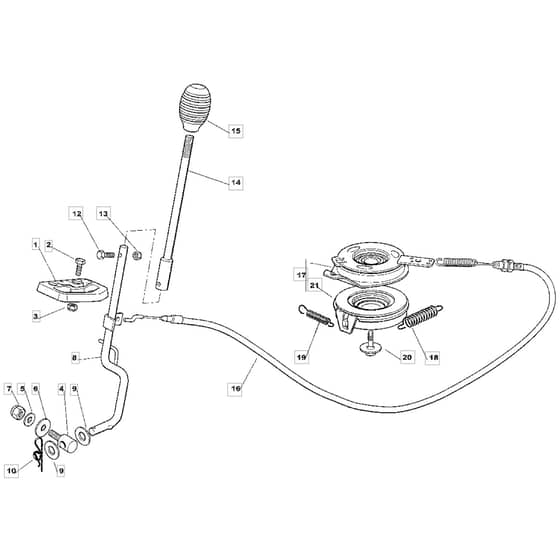

625M - 2006 - 13-2659-16 - Mountfield Ride On Mower Clutch Diagram

Description

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2006

Model Type - EL 63 M

Art.N - 13-2659-16

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127487001/0 Out of stock	Gliding Shoe	£7.55 £6.29
2	MO112791200/1 Out of stock	Screw	£1.34 £1.12
3	MO112154510/0 In stock	Lock Nut	£1.63 £1.36
4	MO127510107/0 Out of stock	Pin	£5.28 £4.40
5	MO325670011/0 Out of stock	Washer	£1.49 £1.24
6	MO322672152/0 Out of stock	Washer	£1.75 £1.46
7	MO112155000/0 In stock	Lock Nut	£1.63 £1.36
9	MO321660100/0 Out of stock	Thrust Easher	£1.90 £1.58
10	MO9598-0002-02 Out of stock	Elastic Pin	£1.49 £1.24
12	MO112789020/0 Out of stock	Screw	£1.54 £1.28
13	MO112154330/0 Out of stock	Nut	£1.49 £1.24
14	MO184317079/0 Out of stock	Engagement Lever-Upper	£18.01 £15.01
15	MO125394510/0 Out of stock	Knob	£4.07 £3.39
16	MO384207104/1 Out of stock	Wire	£29.80 £24.83
17	MO118399065/1 Out of stock	Mechanical Clutch Ass.Y Pos 21 incl.	£250.57 £208.81
18	MO127430579/0 Out of stock	Spring	£11.76 £9.80
19	MO122450110/0 In stock	Spring	£6.84 £5.70
20	MO112735460/0 Out of stock	Screw	£8.93 £7.44
21	MO118399066/1 Out of stock	Mec.Clutch-Lower Part	£201.82 £168.18
