625M - 2005-2006 - 13-2659-15 - Mountfield Ride On Mower Seat Diagram

Name: 625M - 2005-2006 - 13-2659-15 - Mountfield Ride On Mower Seat Diagram
SKU: 625m_13_2659_15_seat-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

625M - 2005-2006 - 13-2659-15 - Mountfield Ride On Mower Seat Diagram

Description

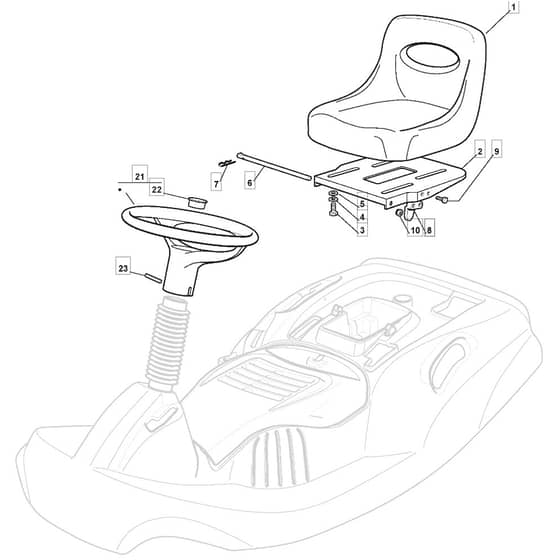

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2005-2006

Model Type - EL 63 M

Art.N - 13-2659-15

Be the first to review this product

0 product questions

	Part No.	Details
1	MO125722463/0 Available to backorder	Seat	£204.12 £170.10
3	MO112793101/0 Available to backorder	Screw	£1.48 £1.23
4	MO112583500/0 Available to backorder	Grower	£1.55 £1.29
5	MO112523060/0 Available to backorder	Washer	£1.55 £1.29
6	MO127864052/1 Available to backorder	Seat Fulcrum Rod	£6.62 £5.52
7	MO124487997/0 Available to backorder	Cotter Pin	£1.55 £1.29
8	MO327063021/1 Available to backorder	Cam	£7.85 £6.54
9	MO112789100/0 Available to backorder	Screw	£1.55 £1.29
10	MO112154330/0 In stock	Nut	£1.55 £1.29
22	MO325120230/0 Available to backorder	Cover	£3.10 £2.58
23	MO112620305/0 Available to backorder	Spirol Pin 6 X 55	£1.82 £1.52
