625M - 2003-2006 - 299970613/MOU - Mountfield Ride On Mower Frame Diagram

Description

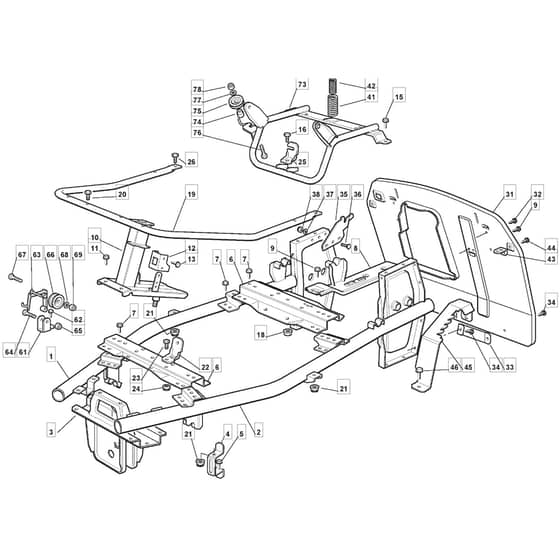

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2003-2006

Model Type - EL 63 M

Art.N - 299970613/MOU

	Part No.	Details
12	MO327772095/0 Available to backorder	Micro Handbrake Stirrup Support	£1.55 £1.29
13	MO112735105/0 Available to backorder	Screw	£1.55 £1.29
16	MO112793701/0 In stock	Screw	£1.55 £1.29
18	MO112293201/0 In stock	Nut	£1.70 £1.42
20	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
23	MO112791011/0 Available to backorder	Screw	£1.39 £1.16
24	MO112154510/0 In stock	Nut	£1.55 £1.29
26	MO112791500/0 Available to backorder	Screw	£1.63 £1.36
36	MO112818690/0 In stock	Screw	£1.55 £1.29
37	MO112521350/0 In stock	Washer	£1.55 £1.29
38	MO112155000/0 In stock	Nut	£1.55 £1.29
42	MO127430569/2 Available to backorder	Spring	£2.82 £2.35
44	MO112729600/0 Available to backorder	Screw	£1.55 £1.29
46	MO112735122/0 Available to backorder	Screw	£1.55 £1.29
64	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
74	MO122170910/0 Available to backorder	Spacer	£9.86 £8.22
75	MO381003375/1 Available to backorder	Pulley	£15.76 £13.13
76	MO112691200/0 Available to backorder	Screw	£1.70 £1.42
77	MO112523060/0 In stock	Washer	£1.55 £1.29
