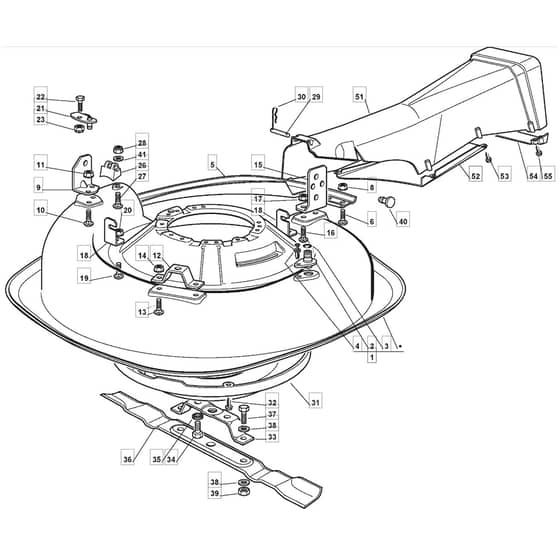

625M - 2003-2006 - 299970613/MOU - Mountfield Ride On Mower 63cm Deck Diagram

Name: 625M - 2003-2006 - 299970613/MOU - Mountfield Ride On Mower 63cm Deck Diagram
SKU: 625m_299970613_mou_63cm_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. 625m_299970613_mou_63cm_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

625M - 2003-2006 - 299970613/MOU - Mountfield Ride On Mower 63cm Deck Diagram

Description

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2003-2006

Model Type - EL 63 M

Art.N - 299970613/MOU

	Part No.	Details
1	MO384564095/1 Available to backorder	Cutting Plate Black	£445.07 £370.89
2	MO125033060/0 In stock	Washing Cutting Deck Connection	£1.55 £1.29
3	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
4	MO112500030/0 In stock	Rivet	£1.55 £1.29
5	MO384650103/0 Available to backorder	Stiffening	£27.76 £23.13
6	MO112815200/0 In stock	Screw	£1.55 £1.29
8	MO112292102/0 In stock	Nut	£1.70 £1.42
12	MO327772133/0 Available to backorder	Clamp	£4.08 £3.40
15	MO327772127/2 Available to backorder	Clamp	£4.24 £3.53
19	MO112818690/0 In stock	Screw	£1.55 £1.29
20	MO112293201/0 In stock	Nut	£1.70 £1.42
22	MO112792611/0 In stock	Screw	£1.55 £1.29
23	MO112155000/0 In stock	Nut	£1.55 £1.29
26	MO327230200/2 Available to backorder	Rear Conveyor Fulcrum	£1.97 £1.64
27	MO112815210/0 Available to backorder	Screw	£1.63 £1.36
28	MO112154510/0 In stock	Nut	£1.55 £1.29
29	MO127510097/1 Available to backorder	Pin	£2.82 £2.35
30	MO124487997/0 In stock	Cotter Pin	£1.55 £1.29
32	MO112728903/0 In stock	Screw	£1.39 £1.16
33	MO327787045/1 In stock	Blade Support	£3.90 £3.25
34	MO112794110/1 Available to backorder	Screw	£2.12 £1.77
35	MO112540070/0 Available to backorder	Washer	£1.63 £1.36
36	MO184109504/0 In stock	Blade	£36.37 £30.31
37	MO112793102/0 In stock	Screw	£1.55 £1.29
38	MO112523060/0 In stock	Washer	£1.55 £1.29
39	MO112155010/0 In stock	Nut	£2.11 £1.76
40	MO127275000/0 Available to backorder	Grommet	£3.10 £2.58
41	MO112521330/0 Available to backorder	Washer	£1.63 £1.36
51	MO127107502/0 Available to backorder	Conveyor	£40.45 £33.71
52	MO327140056/0 Available to backorder	Deflector	£11.70 £9.75
53	MO112735402/0 In stock	Screw	£1.55 £1.29
55	MO112735410/0 Available to backorder	Flanged Hex-Head Screw D.6 X 35	£1.63 £1.36
