625M - 2003 - 13-2659-13 - Mountfield Ride On Mower Steering Diagram

Name: 625M - 2003 - 13-2659-13 - Mountfield Ride On Mower Steering Diagram
SKU: 625m_13_2659_13_steering-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

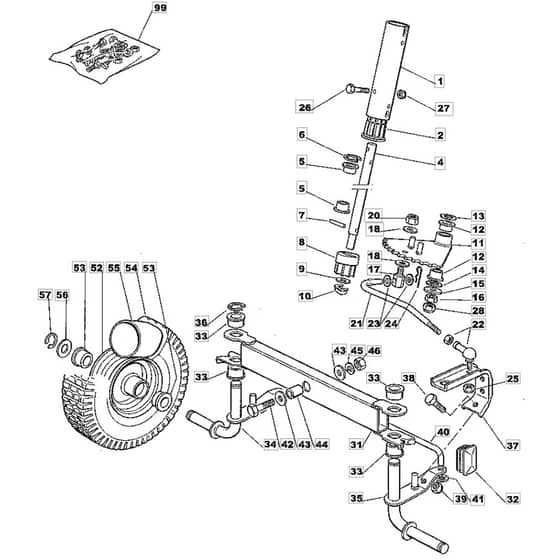

625M - 2003 - 13-2659-13 - Mountfield Ride On Mower Steering Diagram

Description

Mountfield 625M Parts Diagram

Product Name - 625 M

Model Year - 2003

Model Type - EL 63

Art.N - 13-2659-13

Be the first to review this product

0 product questions

	Part No.	Details
1	MO127340305/1 Available to backorder	Column Extension	£21.26 £17.72
2	MO127047005/1 Available to backorder	Bushing	£31.48 £26.23
4	MO127520052/0LC Available to backorder	Steering Column	£67.57 £56.31
5	MO127047004/0 Available to backorder	Bushing	£2.60 £2.17
6	MO112001000/0 In stock	Circlip	£1.82 £1.52
7	MO9595-0262-00 In stock	Locating Pin	£1.69 £1.41
8	MO127570050/0 Available to backorder	Steering Pinion	£11.12 £9.27
9	MO112521370/0 Available to backorder	Washer	£1.55 £1.29
10	MO112436030/0 In stock	Lock Plate	£1.82 £1.52
11	MO384735553/1 Available to backorder	Ring Gear	£32.38 £26.98
13	MO327670054/0 Available to backorder	Washer	£13.68 £11.40
14	MO322672152/0 Available to backorder	Washer	£1.82 £1.52
15	MO112523060/0 In stock	Washer	£1.55 £1.29
16	MO112293200/0 In stock	Nut	£1.55 £1.29
17	MO125510056/1 Available to backorder	Pivot Bolt	£5.35 £4.46
20	MO112156602/0 Available to backorder	Lock Nut	£1.40 £1.17
21	MO127034066/2 Available to backorder	Rod	£46.46 £38.72
22	MO122746610/0 Available to backorder	Ball Joint	£21.12 £17.60
23	MO325670008/1 In stock	Washer	£1.55 £1.29
24	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
26	MO112689515/0 Available to backorder	Screw	£1.55 £1.29
27	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
32	MO118737852/0 Available to backorder	Cap	£1.55 £1.29
34	MO384230405/0 Available to backorder	Stub Axle-Rh	£223.72 £186.43
35	MO384230407/0 Available to backorder	Stub Axle-Lh	£221.51 £184.59
37	MO327787041/0 Available to backorder	Support	£23.24 £19.37
38	MO9997-0820-16 Available to backorder	Screw	£1.55 £1.29
39	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
40	MO127840051/0 Available to backorder	Tie Rod	£36.62 £30.52
41	MO112604899/0 In stock	Locking Washer	£1.55 £1.29
57	MO112000970/0 Available to backorder	Snap Ring	£1.55 £1.29
