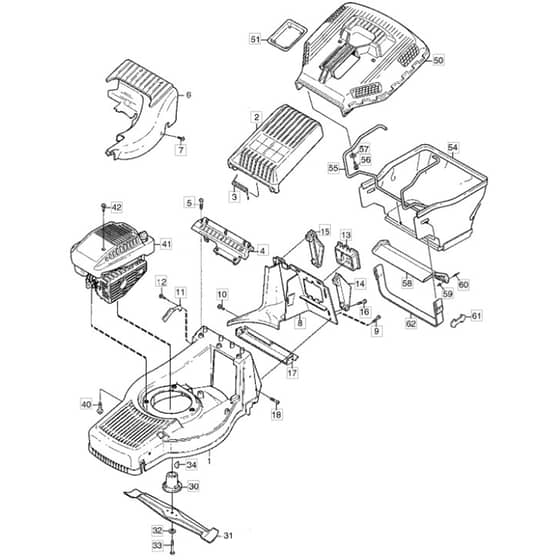

550 R TURBO ES - 2002 - 12-9798-79 - Mountfield Rotary Mower Chassis Diagram

Name: 550 R TURBO ES - 2002 - 12-9798-79 - Mountfield Rotary Mower Chassis Diagram
SKU: 550_r_turbo_es_12_9798_79_chassis-group
Price: 1.16 GBP
Availability: InStock

Part No. 550_r_turbo_es_12_9798_79_chassis-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

550 R TURBO ES - 2002 - 12-9798-79 - Mountfield Rotary Mower Chassis Diagram

Description

Mountfield 550 R TURBO ES Parts Diagram

Product Name - 550R TURBO ES

Model Year - 2002

Model Type -

Art.N - 12-9798-79

	Part No.	Details
1	MO322600068/2 Available to backorder	Stone Guard. Black	£12.37 £10.31
3	MO122450430/0 Available to backorder	Spring	£4.78 £3.98
4	MO322785179/0 Available to backorder	Flap Attachment-Black	£42.16 £35.13
8	MO322108278/0 Available to backorder	Rear Attachment	£47.87 £39.89
10	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
13	MO322109531/0 Available to backorder	Battery Holder Not on 5798. 9798	£50.70 £42.25
16	MO112728692/0 Available to backorder	Screw	£1.48 £1.23
18	MO112735664/0 In stock	Screw	£1.39 £1.16
30	MO122465618/0 In stock	Blade Holder	£9.04 £7.53
32	MO112530140/0 In stock	Washer	£1.97 £1.64
33	MO112735698/0 In stock	Screw	£1.84 £1.53
34	MO112139100/0 In stock	Key	£1.55 £1.29
40	MO120001064/0 Available to backorder	Screw	£10.14 £8.45
50	MO322486095/0 Available to backorder	Collector-Upper Part Black	£56.32 £46.93
51	MO322486098/0 Available to backorder	Cover	£5.63 £4.69
57	MO112521460/0 Available to backorder	Flat Washer	£1.40 £1.17
59	MO9405-0029-00 Available to backorder	Knob	£4.50 £3.75
60	MO9632-0516-00 Available to backorder	Pop Rivet	£2.11 £1.76
62	MO1111-3462-01 Available to backorder	Rubber Band	£35.20 £29.33
