550 R - 2006-2007 - 292555023/MOR - Mountfield Rotary Mower Blade Diagram

Name: 550 R - 2006-2007 - 292555023/MOR - Mountfield Rotary Mower Blade Diagram
SKU: 550_r_292555023_mor_blade-group
Price: 1.16 GBP
Availability: InStock

Part No. 550_r_292555023_mor_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

550 R - 2006-2007 - 292555023/MOR - Mountfield Rotary Mower Blade Diagram

Description

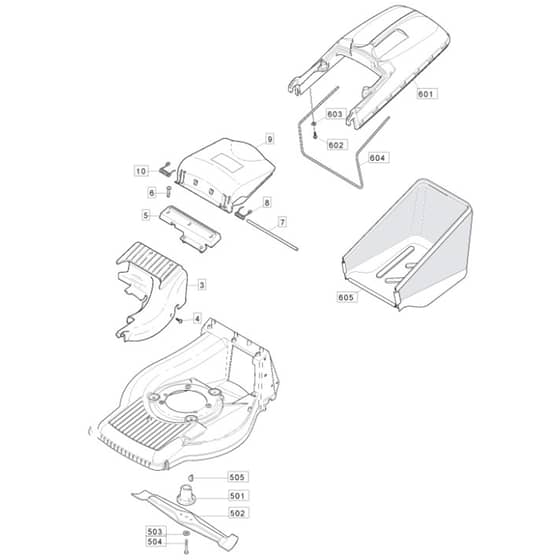

Mountfield 550 R Parts Diagram

Product Name - 550 R

Model Year - 2006-2007

Model Type - TU 554 TR-R 4S

Art.N - 292555023/MOR

	Part No.	Details
4	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
6	MO112735664/0 In stock	Screw	£1.39 £1.16
7	MO122517906/1 Available to backorder	Pivot Pin	£14.66 £12.22
8	MO122450420/1 Available to backorder	Spring-Lh	£1.97 £1.64
9	MO381008021/3 Available to backorder	Flap	£20.77 £17.31
10	MO122450410/1 Available to backorder	Spring-Rh	£12.13 £10.11
501	MO122465618/0 In stock	Blade Holder	£9.04 £7.53
502	MO181004144/0 In stock	Blade	£28.02 £23.35
503	MO112530140/0 In stock	Washer	£1.97 £1.64
504	MO112735698/0 In stock	Screw	£1.84 £1.53
505	MO112139100/0 In stock	Key	£1.55 £1.29
603	MO112521460/0 Available to backorder	Flat Washer	£1.40 £1.17
604	MO122608522/0 Available to backorder	Wire Clamp	£24.06 £20.05
