550 R - 2004 - 12-9786-79 - Mountfield Rotary Mower Transmission Diagram

Name: 550 R - 2004 - 12-9786-79 - Mountfield Rotary Mower Transmission Diagram
SKU: 550_r_12_9786_79_transmission-group
Price: 1.16 GBP
Availability: InStock

Part No. 550_r_12_9786_79_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

550 R - 2004 - 12-9786-79 - Mountfield Rotary Mower Transmission Diagram

Description

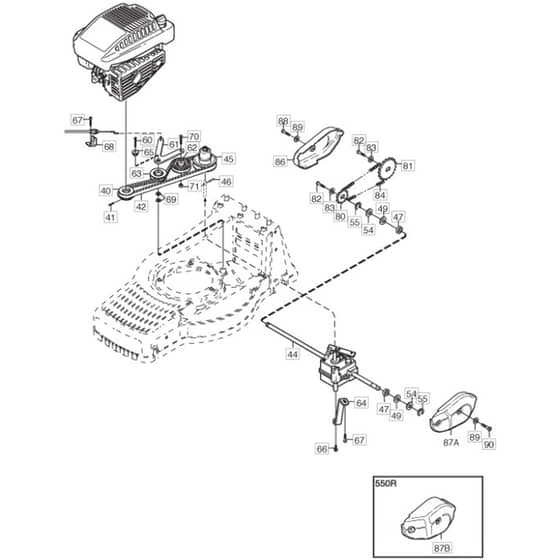

Mountfield 550 R Parts Diagram

Product Name - 550 R

Model Year - 2004

Model Type - TU 554 TR/E-R 4S

Art.N - 12-9786-79

	Part No.	Details
1	MO122601917/0 Available to backorder	Belt Pulley	£24.37 £20.31
41	MO112714312/0 Available to backorder	Screw	£1.55 £1.29
42	MO135064383/0 In stock	V-Belt	£12.98 £10.82
44	MO181003087/1 Available to backorder	Transmission	£239.33 £199.44
46	MO112645700/0 Available to backorder	Locating Pin	£1.63 £1.36
47	MO119035152/0 Available to backorder	Seal Ring	£4.78 £3.98
49	MO112520032/0 Available to backorder	Washer	£1.63 £1.36
54	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
55	MO112000957/0 Available to backorder	Circlip	£1.63 £1.36
60	MO112735669/0 Available to backorder	Screw	£1.55 £1.29
62	MO122601914/0 In stock	Belt Pulley	£21.54 £17.95
63	MO122601915/0 In stock	Tension Roller	£21.41 £17.84
64	MO322778407/0 Available to backorder	Bracket	£11.12 £9.27
65	MO122671656/0 Available to backorder	Spacer	£7.31 £6.09
66	MO112728300/0 Available to backorder	Screw	£1.55 £1.29
67	MO112735664/0 In stock	Screw	£1.39 £1.16
68	MO322806619/0 Available to backorder	Attachment	£4.64 £3.87
69	MO112523040/0 In stock	Washer	£1.55 £1.29
70	MO112792099/0 Available to backorder	Screw	£1.55 £1.29
71	MO112154510/0 In stock	Lock Nut	£1.55 £1.29
80	MO1111-3423-01 In stock	Sprocket 9T	£14.80 £12.33
81	MO1111-3424-01 In stock	Sprocket 21T	£18.30 £15.25
82	MO112735662/1 Available to backorder	Screw	£2.40 £2.00
84	MO1111-3562-01 In stock	Chain	£20.08 £16.73
