5330 PD BW - 2010 - 294537033/MTF - Mountfield Rotary Mower Lower Handle Diagram

Description

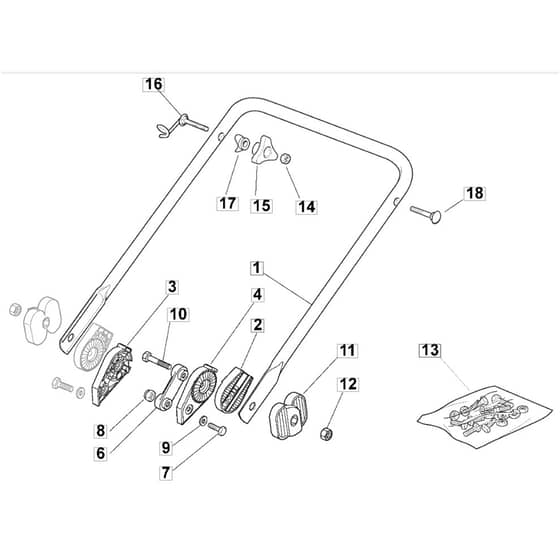

Mountfield 5330 PD BW Parts Diagram

Product Name - 5330 PD BW

Model Year - 2010

Model Type - TDL 534 W TR

Art.N - 294537033/MTF

	Part No.	Details
1	MO381006532/0 In stock	Handle	£38.00 £31.67
2	MO322785081/1 Available to backorder	Support. External From 01-9-2003	£4.78 £3.98
3	MO122785082/0 Available to backorder	Right Internal Support	£3.38 £2.82
4	MO122785083/1 Available to backorder	Left Internal Support	£3.38 £2.82
6	MO122551575/0 Available to backorder	Inside Plaque	£1.63 £1.36
7	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
8	MO112155000/0 In stock	Nut	£1.55 £1.29
9	MO112521350/0 In stock	Washer	£1.55 £1.29
10	MO112691810/0 Available to backorder	Screw	£1.92 £1.60
11	MO122399803/0 Available to backorder	Knob	£1.70 £1.42
12	MO112293202/0 Available to backorder	Nut	£1.97 £1.64
13	MO181008623/1 Available to backorder	Outfit. Screws From 01-9-2003	£9.28 £7.73
13	MO381008596/1 Available to backorder	Outfit. Screws To 31-8-2002	£25.04 £20.87
14	MO112293200/0 In stock	Nut	£1.55 £1.29
15	MO122399900/0 In stock	Black Knob	£1.55 £1.29
16	MO181003801/1 Available to backorder	Guide Spring	£3.38 £2.82
17	MO122680006/1 In stock	Washer	£1.84 £1.53
18	MO112819201/0 In stock	Carriage Bolt M8 X 60	£2.81 £2.34
