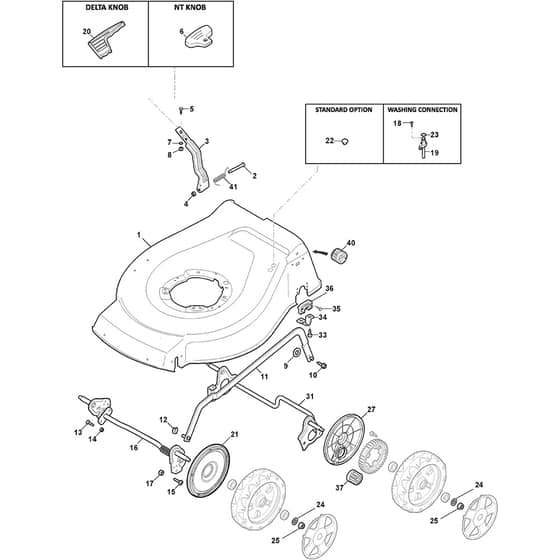

5320 PD ES - 2011-2012 - 299532523/MTF - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Name: 5320 PD ES - 2011-2012 - 299532523/MTF - Castel Garden Rotary Mower Deck and Height Adjusting Diagram
SKU: 5320_pd_es_299532523_mtf_deck_and_height_adjusting-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

5320 PD ES - 2011-2012 - 299532523/MTF - Castel Garden Rotary Mower Deck and Height Adjusting Diagram

Description

Castel Garden 5320 PD ES Parts Diagram

Product Name - 5320 PD ES

Model Year - 2011-2012

Model Type - NTL 534 TR/E

Art.N - 299532523/MTF

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381003909/0 Available to backorder	Red Deck To 31-August-2011	£222.20 £185.17
1	MO381004540/0 Available to backorder	Red Deck From 01-9-2011	£197.09 £164.24
2	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
3	MO322322857/0 Available to backorder	Lever. Height Adjustment Galvanized - White	£5.92 £4.93
3	MO322322851/0 Available to backorder	Lever. Height Adjustment Galvanized - Black To 31-8-2017	£8.02 £6.68
5	MO112788512/0 Available to backorder	Screw	£1.55 £1.29
6	MO322394503/0 Available to backorder	Knob NT Knob	£1.82 £1.52
7	MO112521310/0 Available to backorder	Washer	£1.40 £1.17
8	MO112150000/0 Available to backorder	Nut	£1.40 £1.17
9	MO112369500/0 In stock	Elastic Washer	£1.40 £1.17
10	MO122943013/0 Available to backorder	Screw	£4.78 £3.98
11	MO381002050/0 Available to backorder	Rod. Height Adjustment From 01-9-2017	£37.73 £31.44
12	MO112436050/0 In stock	Plate	£1.82 £1.52
13	MO112727803/0 Available to backorder	Screw	£1.55 £1.29
15	MO112727801/0 Available to backorder	Screw	£1.55 £1.29
16	MO381302923/0 Available to backorder	Front Wheel Axle From 01-9-2017	£39.42 £32.85
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO112728450/0 In stock	Screw From 01-9-2011	£1.55 £1.29
19	MO322034002/0 Available to backorder	Washing Connection From 01-9-2011	£1.69 £1.41
20	MO322394522/0 Available to backorder	Knob Delta Knob	£8.06 £6.72
21	MO322600145/0 Available to backorder	Protection. Wheel As Optional	£1.69 £1.41
22	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
23	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
24	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
25	MO112155000/0 In stock	Nut	£1.55 £1.29
27	MO322600207/0 Available to backorder	Protection. Wheel	£2.40 £2.00
31	MO381302829/0 Available to backorder	Rear Wheel Axle From 01-9-2017	£83.36 £69.47
34	MO322545152/0 In stock	Plate	£1.55 £1.29
35	MO112728697/0 In stock	Screw	£1.55 £1.29
36	MO322785304/1 Available to backorder	Support	£2.26 £1.88
37	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
40	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
41	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
