5310 PD - 2009 - 291572043/M09 - Mountfield Rotary Mower Transmission Diagram

Description

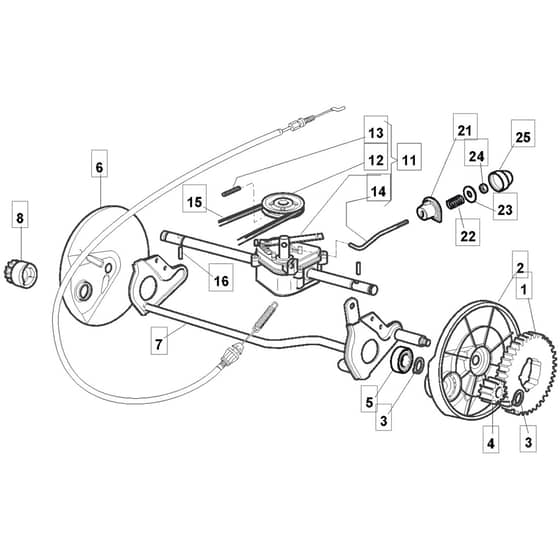

Mountfield 5310 PD Parts Diagram

Product Name - 5310 PD SILENT

Model Year - 2009

Model Type - CAL 534 TR SIL

Art.N - 291572043/M09

	Part No.	Details
1	MO122120105/2 Available to backorder	Ring Gear	£9.92 £8.27
2	MO122600093/0 Available to backorder	Left Wheel Protection	£3.38 £2.82
3	MO112608600/0 In stock	Seeger	£1.55 £1.29
4	MO122570120/1 In stock	Left Pinion	£7.39 £6.16
5	MO119216035/0 In stock	Bearing	£3.52 £2.93
6	MO122600092/0 Available to backorder	Right Wheel Protection	£3.38 £2.82
7	MO381000147/0 Available to backorder	Rear Wheel Axle	£27.44 £22.87
8	MO122570110/1 In stock	Right Pinion	£7.39 £6.16
11	MO181003076/1 Available to backorder	G.T. Gear Box To 31-8-2008	£121.07 £100.89
11	MO181003092/0 In stock	Gear Box From 01-9-2008	£63.96 £53.30
12	MO122601909/0 In stock	Pulley	£5.65 £4.71
13	MO112645705/0 In stock	Elastic Pin ø5X32	£1.55 £1.29
14	MO122033283/0 In stock	Adjustment Rod (General Transmission) From 01-9-2003	£4.64 £3.87
15	MO135063902/1 In stock	Belt	£8.53 £7.11
16	MO122753000/0 In stock	Pin	£1.55 £1.29
21	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
22	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
23	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
24	MO112154510/0 In stock	Nut	£1.55 £1.29
25	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
