5310 PD - 2008 - 294538043/M08 - Mountfield Rotary Mower Upper Handle Diagram

Name: 5310 PD - 2008 - 294538043/M08 - Mountfield Rotary Mower Upper Handle Diagram
SKU: 5310_pd_294538043_m08_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Part No. 5310_pd_294538043_m08_upper_handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

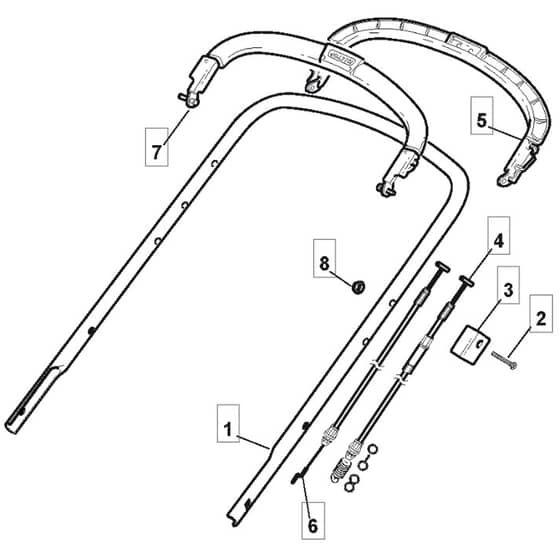

5310 PD - 2008 - 294538043/M08 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield 5310 PD Parts Diagram

Product Name - 5310 PD

Model Year - 2008

Model Type - TD 534 TR

Art.N - 294538043/M08

	Part No.	Details
1	MO381006803/0 Available to backorder	Upper Handle	£39.42 £32.85
2	MO112689500/0 Available to backorder	Screw	£1.63 £1.36
3	MO322551685/0 In stock	Cable Holder	£7.52 £6.27
4	MO381000709/2 In stock	Cable Rear Drive	£19.84 £16.53
5	MO381003297/1 In stock	Driving Lever	£22.10 £18.42
6	MO181000657/0 Available to backorder	Cable. Thread Engine Brake ST. Engine.B&S 450-500 Series	£15.85 £13.21
7	MO381003298/1 In stock	Lever. Engine Brake	£32.38 £26.98
8	MO112154510/0 In stock	Low Self-Locking Nut M6 Uni7474 Acc.6S	£1.55 £1.29
