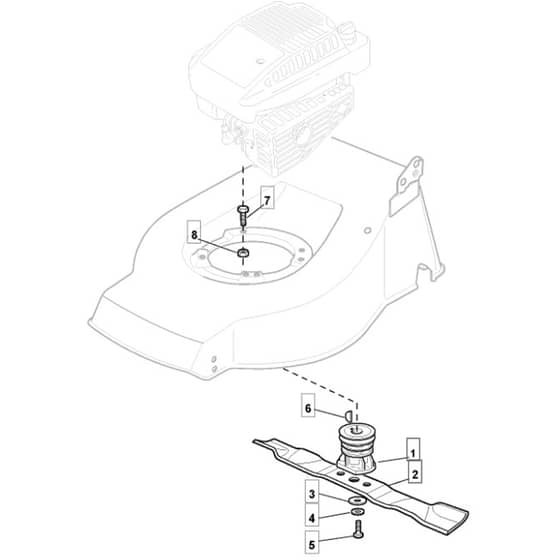

513 PD_ES - 2007 - 29453843/MO7 - Mountfield Rotary Mower Blade Diagram

Name: 513 PD_ES - 2007 - 29453843/MO7 - Mountfield Rotary Mower Blade Diagram
SKU: 513_pd_es_29453843_mo7_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. 513_pd_es_29453843_mo7_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

513 PD_ES - 2007 - 29453843/MO7 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield 513 PD_ES Parts Diagram

Product Name - 513 PD_ES

Model Year - 2007

Model Type - TD 534 TR/E

Art.N - 29453843/MO7

	Part No.	Details
1	MO122465607/4 In stock	Hub With Pulley	£9.30 £7.75
2	MO181004381/1 In stock	Blade Standard From 01-9-2001	£15.41 £12.84
2	MO181004398/0 Available to backorder	Blade Winged	£25.46 £21.22
3	MO122160400/0 In stock	Elastic Disc	£1.84 £1.53
4	MO112523080/0 In stock	Washer	£1.55 £1.29
5	MO112735698/0 In stock	Screw	£1.84 £1.53
6	MO112139100/0 In stock	Key	£1.55 £1.29
7	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
8	MO112154210/0 Available to backorder	Self-Lock Winged Nut M8 Din 6927	£1.70 £1.42
