511 PD BW SILENT - 2010 - 291577043/M09 - Mountfield Rotary Mower Deck Diagram

Name: 511 PD BW SILENT - 2010 - 291577043/M09 - Mountfield Rotary Mower Deck Diagram
SKU: 511_pd_bw_silent_291577043_m09_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. 511_pd_bw_silent_291577043_m09_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

511 PD BW SILENT - 2010 - 291577043/M09 - Mountfield Rotary Mower Deck Diagram

Description

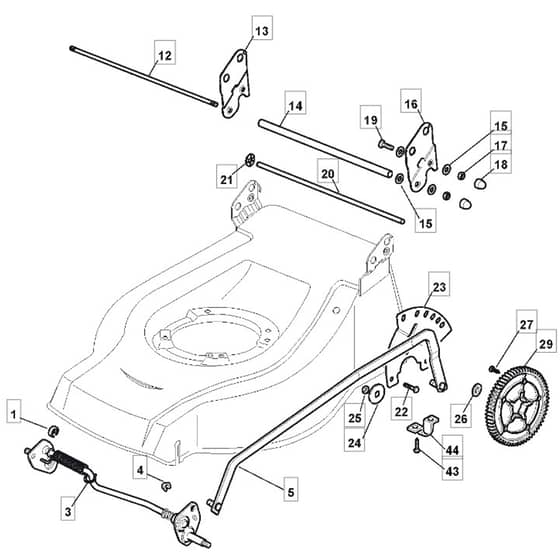

Mountfield 511 PD BW SILENT Parts Diagram

Product Name - 511 PD BW SILENT

Model Year - 2010

Model Type - CAL 534 W TR SIL

Art.N - 291577043/M09

	Part No.	Details
1	MO122171002/0 Available to backorder	Spacer To 31-August-2007	£1.55 £1.29
3	MO381002859/0 Available to backorder	Front Wheel Axle	£50.32 £41.93
4	MO112436050/0 In stock	Plate	£1.84 £1.53
5	MO381002017/0 Available to backorder	Rod. Height Adjustment	£35.20 £29.33
12	MO122517856/1 Available to backorder	Stone Guard Fulcrum	£5.06 £4.22
15	MO122671653/0 Available to backorder	Washer	£1.63 £1.36
17	MO112155000/0 In stock	Nut	£1.55 £1.29
18	MO118203854/0 Available to backorder	Cap	£1.55 £1.29
19	MO112793301/0 Available to backorder	Screw	£1.55 £1.29
21	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
22	MO112792611/0 In stock	Screw	£1.55 £1.29
24	MO112523060/0 In stock	Washer	£1.55 £1.29
26	MO122675100/0 Available to backorder	Washer	£1.92 £1.60
27	MO112728706/0 In stock	Screw	£1.60 £1.33
29	MO322120110/0 Available to backorder	Wheels Crown	£19.92 £16.60
43	MO112731350/0 Available to backorder	Screw	£1.63 £1.36
44	MO322545152/0 In stock	Axle Bracket	£1.55 £1.29
